Bayesian pipelines with stantargets

Will Landau

Demanding computation in R

• Bayesian data analysis: Stan, JAGS, NIMBLE, greta
• Deep learning: keras, tensorflow, torch
• Machine learning: tidymodels
• PK/PD: nlmixr, mrgsolve
• Clinical trial simulation: rpact, Mediana
• Statistical genomics
• Social network analysis
• Permutation tests
• Database queries: DBI
• Big data ETL

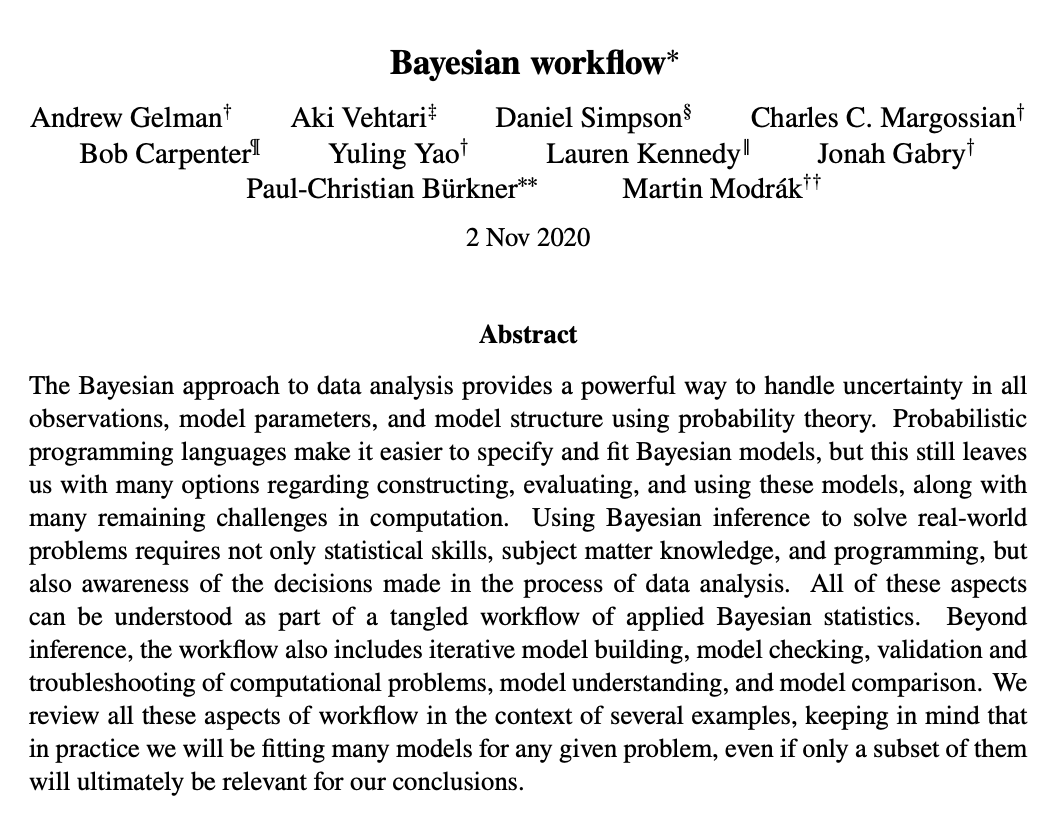

• https://arxiv.org/abs/2011.01808

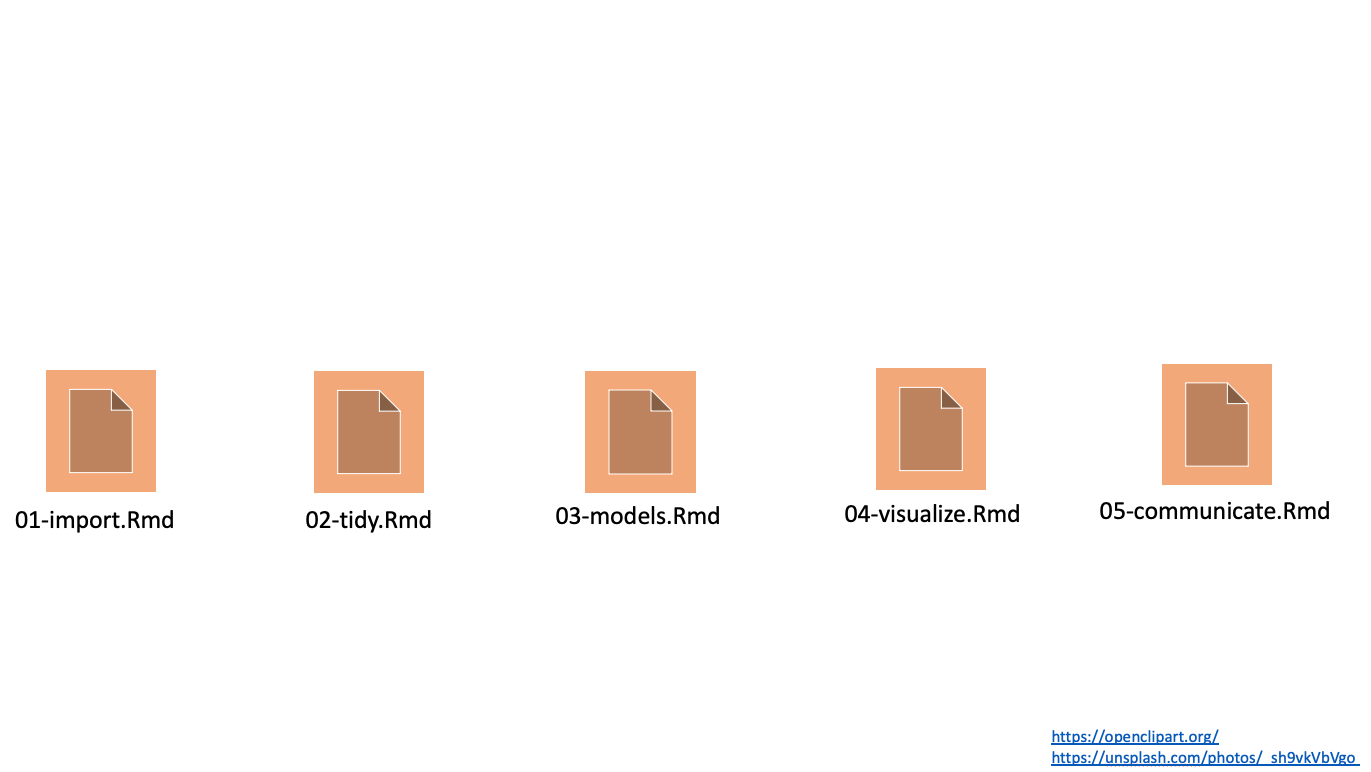

Typical notebook-based project

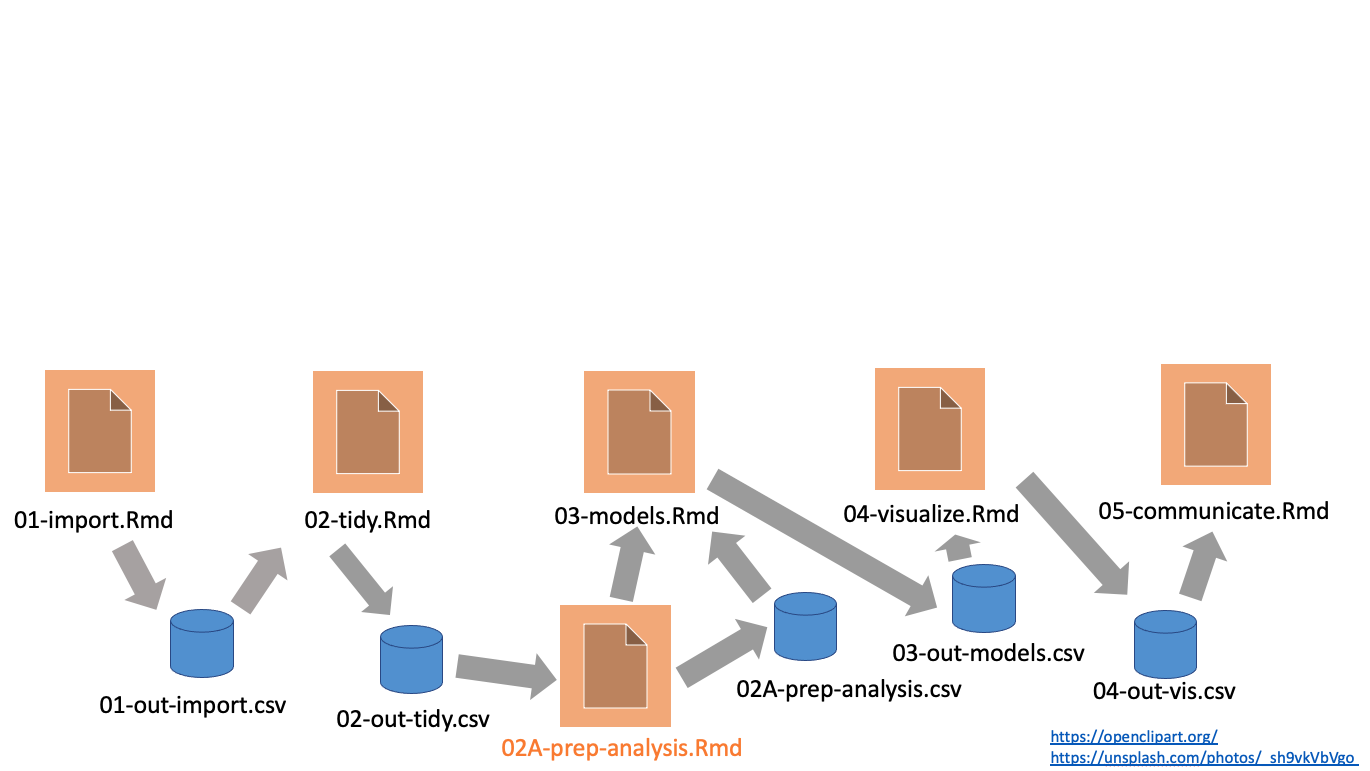

Messy reality: managing data

Messy reality: managing change

Pipeline tools

• Orchestrate moving parts.
• Scale the computation.
• Manage output data.

targets

• Designed for R.
• Encourages good programming habits.
• Automatic dependency detection.
• Behind-the-scenes data management.
• Distributed computing.

Resources

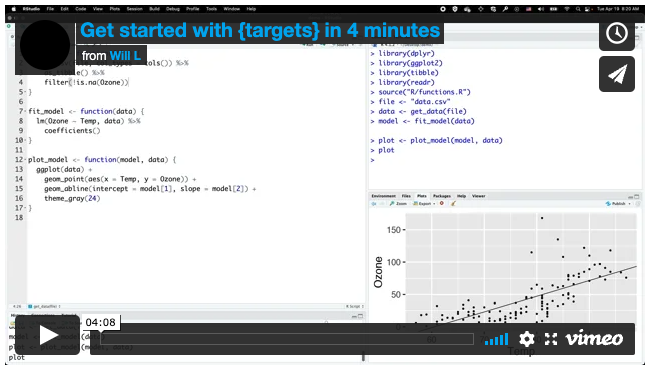

• Get started in four minutes: https://vimeo.com/700982360
• Example project: https://github.com/wlandau/targets-four-minutes
• Documentation website: https://docs.ropensci.org/targets/
• User manual: https://books.ropensci.org/targets/

Get started

1. Write functions.
   • Produce datasets, analyze datasets, and summarize analyses.
   • Return clean exportable R objects (can be saved in one R process and read in another).
   • Minimize side effects.
   • R scripts in an R/ folder of the project.
2. Call use_targets() to generate code files for targets.
3. Edit _targets.R by hand to define the pipeline.
   • Start small first if your full project is large or computationally demanding.
4. Use tar_manifest() and tar_visnetwork() to inspect the pipeline.
5. Use tar_make() to run the pipeline.
6. Inspect the results with tar_read() or tar_load().
7. Scale up the pipeline if you started small.

Example pipeline

# _targets.R file, written by use_targets() and then modified

# Setup:
library(targets)
tar_option_set(packages = c("dplyr", "ggplot2", "readr"))
options(clustermq.scheduler = "multicore")
tar_source() # Run scripts in the R/ folder.

# Pipeline definition:
list(
  tar_target(name = file, command = "data.csv", format = "file"),
  tar_target(name = data, command = get_data(file)),
  tar_target(name = model, command = fit_model(data)),
  tar_target(name = plot, command = plot_model(model, data))
)

Visualization

tar_mermaid() graph:

graph LR
  subgraph legend
    x7420bd9270f8d27d([""Up to date""]):::uptodate --- x0a52b03877696646([""Outdated""]):::outdated
    x0a52b03877696646([""Outdated""]):::outdated --- xbf4603d6c2c2ad6b([""Stem""]):::none
    xbf4603d6c2c2ad6b([""Stem""]):::none --- xf0bce276fe2b9d3e>""Function""]:::none
  end
  subgraph Graph
    xe1eeca7af8e0b529(["model"]):::uptodate --> xe345e05e168a80f1(["summary"]):::uptodate
    xb7119b48552d1da3(["data"]):::uptodate --> xaf95534ce5e3f59e(["plot"]):::outdated
    xe1eeca7af8e0b529(["model"]):::uptodate --> xaf95534ce5e3f59e(["plot"]):::outdated
    x619ade380bedf7c2>"plot_model"]:::outdated --> xaf95534ce5e3f59e(["plot"]):::outdated
    x6d51284275156668(["file"]):::uptodate --> xb7119b48552d1da3(["data"]):::uptodate
    xd69ee82cddb4d6bb>"get_data"]:::uptodate --> xb7119b48552d1da3(["data"]):::uptodate
    xb7119b48552d1da3(["data"]):::uptodate --> xe1eeca7af8e0b529(["model"]):::uptodate
    x9c2a6d6bf64731cc>"fit_model"]:::uptodate --> xe1eeca7af8e0b529(["model"]):::uptodate
  end
  classDef uptodate stroke:#000000,color:#ffffff,fill:#354823;
  classDef outdated stroke:#000000,color:#000000,fill:#78B7C5;
  classDef none stroke:#000000,color:#000000,fill:#94a4ac;
  linkStyle 0 stroke-width:0px;
  linkStyle 1 stroke-width:0px;
  linkStyle 2 stroke-width:0px;

• See also tar_visnetwork().
• Details: https://wlandau.github.io/targets-intro.

Example usage

tar_outdated()
#> [1] "plot"

tar_make()
#> ✔ skip target file
#> ✔ skip target data
#> ✔ skip target model
#> ✔ skip target summary
#> • start target plot
#> • built target plot
#> • end pipeline: 0.501 seconds

tar_read(plot)

Parallel computing (1/2)

1. Call use_targets() to automatically configure targets for your system.
   • Writes _targets.R, clustermq.tmpl, and future.tmpl for a cluster if you have one (Slurm, SGE, PBS, TORQUE, or LSF).
   • Otherwise, use_targets() configures _targets.R to use local multi-process computing.
2. Performance: tar_option_set() and other choices:
   • memory: "transient" or "persistent"
   • storage: "main" or "worker"
   • retrieval: "main" or "worker"
   • deployment: "main" or "worker"
   • Choose a branching/batching for optimal scale if needed.
   • Choose a folder for the project and data store where the file system is fast.

Parallel computing (2/2)

3. Run the pipeline for a desired n maximum workers:
   • tar_make_clustermq(workers = n) for persistent workers.
   • tar_make_future(workers = n) for transient workers.
4. Trust the package to orchestrate the targets.
   • model1 and model2 run in parallel after data finishes.
   • summary1 runs after model1 is done.
   • summary2 runs after model2 is done.
   • summary1 and summary2 can run in parallel.
   • results waits for both summary1 and summary2.

graph LR
  subgraph Graph
    xb7119b48552d1da3(["data"]):::outdated --> xd2415809dfccb1c9(["model1"]):::outdated
    xb7119b48552d1da3(["data"]):::outdated --> x5e90f77e4394a7c0(["model2"]):::outdated
    xe7486797ee90ffad(["summary1"]):::outdated --> x26a6b9ffae1b7593(["results"]):::outdated
    x7af94b1ab69cf0e7(["summary2"]):::outdated --> x26a6b9ffae1b7593(["results"]):::outdated
    xd2415809dfccb1c9(["model1"]):::outdated --> xe7486797ee90ffad(["summary1"]):::outdated
    x5e90f77e4394a7c0(["model2"]):::outdated --> x7af94b1ab69cf0e7(["summary2"]):::outdated
  end
  classDef outdated stroke:#000000,color:#000000,fill:#78B7C5;
  classDef none stroke:#000000,color:#000000,fill:#94a4ac;

5. Learn more:
   • https://books.ropensci.org/targets/performance.html
   • https://books.ropensci.org/targets/hpc.html

Extending targets

Target factories

• A target factory is a reusable function that creates target objects.
• Usually requires metaprogramming: http://adv-r.had.co.nz/Computing-on-the-language.html#substitute

#' @title Example target factory in an R package.
#' @export
#' @description A target factory to analyze data.
#' @return A list of 3 target objects to:
#'   1. Track the file for changes,
#'   2. Read the data in the file, and
#'   3. Analyze the data.
#' @param File Character of length 1, path to the file.
target_factory <- function(file) {
  list(
    tar_target_raw("file", file, format = "file", deployment = "main"),
    tar_target_raw("data", quote(read_data(file)), format = "fst_tbl", deployment = "main"),
    tar_target_raw("model", quote(run_model(data)), format = "qs")
  )
}

Target factories simplify pipelines.

# _targets.R
library(targets)
library(yourExamplePackage)
list(
  target_factory("data.csv")
)

# R console
tar_manifest()
#> # A tibble: 3 x 2
#>   name  command
#>   <chr> <chr>
#> 1 file  "\"data.csv\""
#> 2 data  "read_data(file)"
#> 3 model "run_model(data)"

Enter stantargets

• Easy pipeline creation for Stan models.
• Uses R packages cmdstanr (Gabry and Češnovar 2021) and posterior (Bürkner et al. 2022).

Target factories for Stan

• Closely follows the function interface of cmdstanr: https://mc-stan.org/cmdstanr/reference/index.html.

Algorithm	Single-rep multi-output	Multi-rep single-output
MCMC	tar_stan_mcmc()	tar_stan_mcmc_rep_draws() tar_stan_mcmc_rep_diagnostics() tar_stan_mcmc_rep_summary()
Gen. Qty.	tar_stan_gq()	tar_stan_gq_rep_draws() tar_stan_gq_rep_summary()
Variational	tar_stan_vb()	tar_stan_vb_rep_draws() tar_stan_vb_rep_summary()
Optimization	tar_stan_mle()	tar_stan_mle_rep_draws() tar_stan_mle_rep_summary()
Compilation	tar_stan_compile()
Summaries	tar_stan_summary()

tar_stan_mcmc()

• Run the model once.
• Create targets for MCMC draws, summaries, and HMC/NUTS diagnostics.

# _targets.R
# ...
list(
  stantargets::tar_stan_mcmc(name = example, ...)
)

graph LR
  subgraph Graph
    x4cd7b5c3c125f548(["example_data"]):::outdated --> xecfe54c2d4fb279d(["example_summary_model"]):::outdated
    x6cc8b8be867e1e0d(["example_mcmc_model"]):::outdated --> xecfe54c2d4fb279d(["example_summary_model"]):::outdated
    x6cc8b8be867e1e0d(["example_mcmc_model"]):::outdated --> x54294c764991c41d(["example_diagnostics_model"]):::outdated
    x6cc8b8be867e1e0d(["example_mcmc_model"]):::outdated --> xc4714540b066b032(["example_draws_model"]):::outdated
    x4cd7b5c3c125f548(["example_data"]):::outdated --> x6cc8b8be867e1e0d(["example_mcmc_model"]):::outdated
    x7959ddde0153f85d(["example_model_file"]):::outdated --> x6cc8b8be867e1e0d(["example_mcmc_model"]):::outdated
  end
  classDef outdated stroke:#000000,color:#000000,fill:#78B7C5;
  classDef none stroke:#000000,color:#000000,fill:#94a4ac;

tar_stan_mcmc_rep_summary()

• Run the model multiple times in batches over many randomly-generated datasets.
• Only return posterior summaries.

# _targets.R
# ...
list(
  stantargets::tar_stan_mcmc_rep_summary(name = example, ...)
)

graph LR
  subgraph Graph
    x4cd7b5c3c125f548["example_data"]:::outdated --> xbeea21a0642714d5["example_model"]:::outdated
    xbeea21a0642714d5["example_model"]:::outdated --> xe6eda53558c41c5e(["example"]):::outdated
    x7205eb8b5739d5b6(["example_file_model"]):::outdated --> x4cd7b5c3c125f548["example_data"]:::outdated
    xa2d1919ce1427f12(["example_batch"]):::outdated --> x4cd7b5c3c125f548["example_data"]:::outdated
  end
  classDef outdated stroke:#000000,color:#000000,fill:#78B7C5;
  classDef none stroke:#000000,color:#000000,fill:#94a4ac;

tar_stan_mcmc_rep_draws()

• Run the model multiple times in batches over many randomly-generated datasets.
• For each replication, return an arbitrary function of the data and posterior draws.
• Straightforward to adapt for simulation-based calibration with the SBC package (Kim et al. 2022).

# _targets.R ...
get_ranks <- function(data, draws) {
  draws <- select(draws, starts_with(names(data$.join_data)))
  truth <- map_dbl(
    names(draws),
    ~eval(parse(text = .x), envir = data$.join_data)
  )
  out <- SBC::calculate_ranks_draws_matrix(truth, as_draws_matrix(draws))
  as_tibble(as.list(out))
}

list(
  stantargets::tar_stan_mcmc_rep_draws(
    name = example,
    transform = get_ranks
    ...
  )
)

Example model

• Bayesian longitudinal linear model of a continuous endpoint in a clinical trial:

\[ \begin{aligned} & y \sim \text{MVN}(X_{(n \cdot t) \times p} \beta, \ I_{n \times n} \otimes \Sigma_{t \times t} ) \\ & \qquad \beta \sim \text{MVN} (0, s_\beta^2 I_{p \times p})\\ & \qquad \Sigma_{t \times t} = \left (I_{t \times t} \sigma \right ) \Lambda_{t \times t} \Lambda_{t \times t}' \left (I_{t \times t} \sigma \right ) \\ & \qquad \qquad \sigma_1, \ldots, \sigma_t \stackrel{\text{ind}}{\sim} \text{Uniform}(0, s_\sigma) \\ & \qquad \qquad \Lambda_{t \times t}\Lambda_{t \times t}' \sim \text{LKJ}(\text{shape} = s_\lambda, \text{order} = t) \end{aligned} \]

• Special case of a mixed model of repeated measures (MMRM; Mallinckrodt et al. 2008).

• \(n\): number of patients
• \(t\): number of scheduled study visits (discrete time)
• \(p\): number of fixed effects
• \(y\): constant vector of \(n \cdot t\) observed clinical outcomes (1 per patient visit).
• \(X_{(n \cdot t) \times p}\): model matrix with \(n \cdot t\) rows and \(p\) columns with treatment assignments and baseline covariates.
• \(\beta\): parameter vector of \(p\) fixed effects.
• \(\otimes\): Kronecker product.
• \(\Sigma_{t \times t}\): residual covariance block (visits within patient)
• \(\Lambda_{t \times t}\): lower-triangular Cholesky factor of the residual correlation matrix block (visits within patient).
• \(\sigma = (\sigma_1, \ldots, \sigma_t)\), where \(\sigma_s\) is the residual SD for visit \(s\).
• \(s_\beta\), \(s_\sigma\), \(s_\lambda\): scalar hyperparameters

Example code to run the model with stantargets

• https://github.com/wlandau/stantargets-talk
  • demo_analysis.R: analyze a single dataset and inspect the results.
  • demo_simulation.R: simulate multiple datasets and evaluate convergence and coverage in posterior intervals.
  • demo_sbc.R: check the correctness of the Stan code using simulation-based calibration (SBC; Talts et al. 2020, Cook et al. 2006).

Thanks

• Jarad Niemi sparked my interest in pipeline tools.
• Rich FitzJohn’s remake package established breakthrough concepts for pipelines in R.
• rOpenSci reviewed, adopted, and promoted targets and stantargets.
• Contributions from the community:
  • https://github.com/ropensci/targets/discussions
  • https://github.com/ropensci/stantargets/discussions

Sources

• Bürkner P, Gabry J, Kay M, Vehtari A (2022). “posterior: Tools for Working with Posterior Distributions.” R package version 1.3.1, https://mc-stan.org/posterior/.
• Cook, Samantha R., Andrew Gelman, and Donald B. Rubin (2006). “Validation of Software for Bayesian Models Using Posterior Quantiles.” Journal of Computational and Graphical Statistics 15 (3): 675–92. http://www.jstor.org/stable/27594203.
• Gabry, J., & Češnovar, R. (2021). “Cmdstanr: R interface to CmdStan”. <https://mc-stan. org/cmdstanr>.
• Gelman, A., Aki Vehtari, Daniel Simpson, Charles C. Margossian, Bob Carpenter, Yuling Yao, Lauren Kennedy, Jonah Gabry, Paul-Christian Bürkner, and Martin Modrák (2020). “Bayesian Workflow”. arXiv, https://arxiv.org/abs/2011.01808.
• Kim, Shinyoung, Hyunji Moon, Martin Modrák, and Teemu Säilynoja (2022). “SBC: Simulation Based Calibration for Rstan/Cmdstanr Models.”
• Landau, W. M. (2021). “The targets R package: A dynamic make-like function-oriented pipeline toolkit for reproducibility and high-performance computing.” Journal of Open Source Software, 6(57), 2959. https://doi.org/10.21105/joss.02959
• Landau, W. M., (2021). “The stantargets R package: a workflow framework for efficient reproducible Stan-powered Bayesian data analysis pipelines.” Journal of Open Source Software, 6(60), 3193, https://doi.org/10.21105/joss.03193.
• Mallinckrodt, C. H., Lane, P. W., Schnell, D., Peng, Y., Mancuso, J. P. (2008). “Recommendations for the primary analysis of continuous endpoints in longitudinal clinical trials.” Drug information journal, 42, 303-319.
• Stan Development Team. (2012). “Stan: A C++ library for probability and sampling.” <https: //mc-stan.org>
• Talts, Sean, Michael Betancourt, Daniel Simpson, Aki Vehtari, and Andrew Gelman (2020). “Validating Bayesian Inference Algorithms with Simulation-Based Calibration.” https://arxiv.org/abs/1804.06788.
