mirai and crew: next-generation async to supercharge Plumber, Shiny, and targets

Charlie Gao and Will Landau

Carrying the baton for R

What is (next generation) async?

Parallelism: the ability to do multiple things at once

Async: not waiting while this happens

Async is a ‘first class’ experience in many languages

• Rust has its ‘fearless concurrency’
• Go has its Goroutines
• Javascript has its Promises

Javascript ‘just works’^TM in your web browser

Where we are now in R

Parallelism: the ability to do multiple things at once

Async: not waiting while this happens

Missing a ‘first-class’ async experience

• {parallel} is parallel, not async
• {callr} only for local parallelism (saves files to filesystem), not always async
• {future} relies on {parallelly} and blocks if tasks > workers, not always async

Bringing first class async to R

• Nanomsg Next Gen (NNG) implements async in C
• Incredibly lightweight, brokerless messaging

• {nanonext} brings NNG to R

mirai

ミライ

Minimalist Async Evaluation Framework for R

Parallelism: the ability to do multiple things at once

Async: not waiting while this happens

• {mirai} uses {nanonext} to deliver ‘first-class’ async
• Connect thousands of parallel processes
• Launch millions of tasks all at once
• Responsiveness: milliseconds -> microseconds

The current generation of promises

A ‘promising’ object is used in Shiny ExtendedTask / Plumber:

• future() blocks the session if tasks > workers
• future_promise() has never exited ‘experimental’
• Requires constant polling for resolution of each promise

The next generation of promises

• mirai() is now a ‘promising’ object
• Native support for Shiny ExtendedTask / Plumber
• Event-driven: no polling & zero-latency

Launching
one million promises
all at once

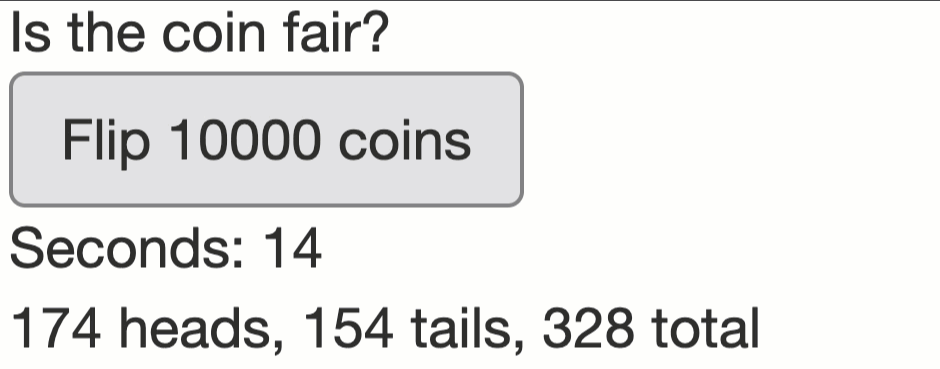

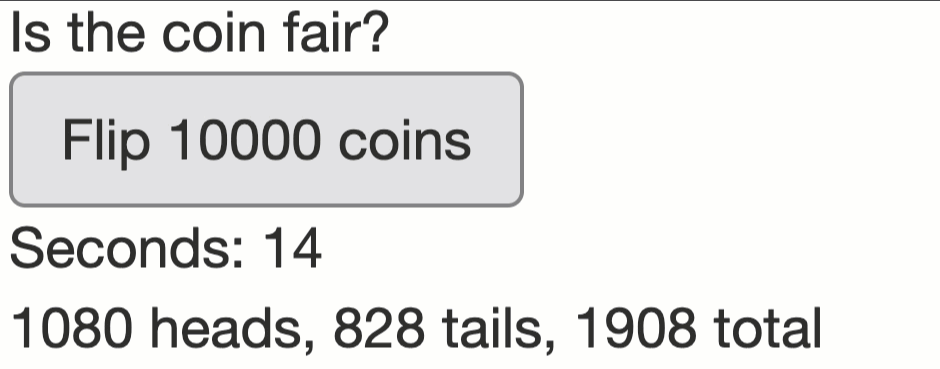

Demo: simulating parallel coin flips

First-class async for R / R Shiny

x Slow polling

✔ mirai promises

Extending mirai

Science demands heavy computing

• Bayesian methods help safety/efficacy decisions in clinical trials
• Each model could take hours to run
• 1000+ simulations to design a clinical trial

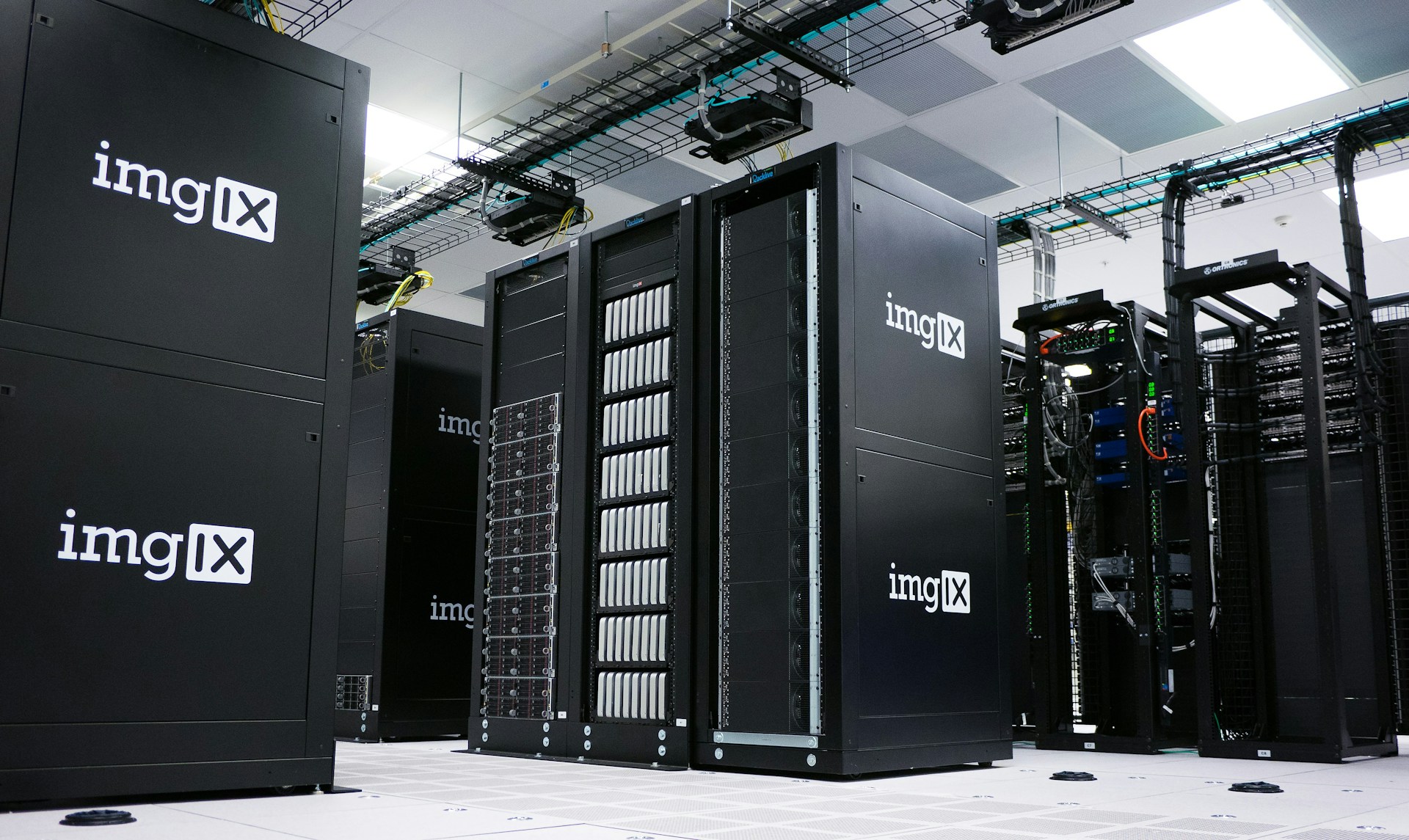

Too much work for one laptop

• Clinical trial simulations often need hundreds of computers
• Need distributed computing: e.g. SLURM clusters, AWS Batch
• Challenges: access, overhead, and cost

crew scales data science

1. Auto-scaling reduces overhead and cost
2. Plugins access big high-performance computing systems
3. mirai provides low-overhead interprocess communication

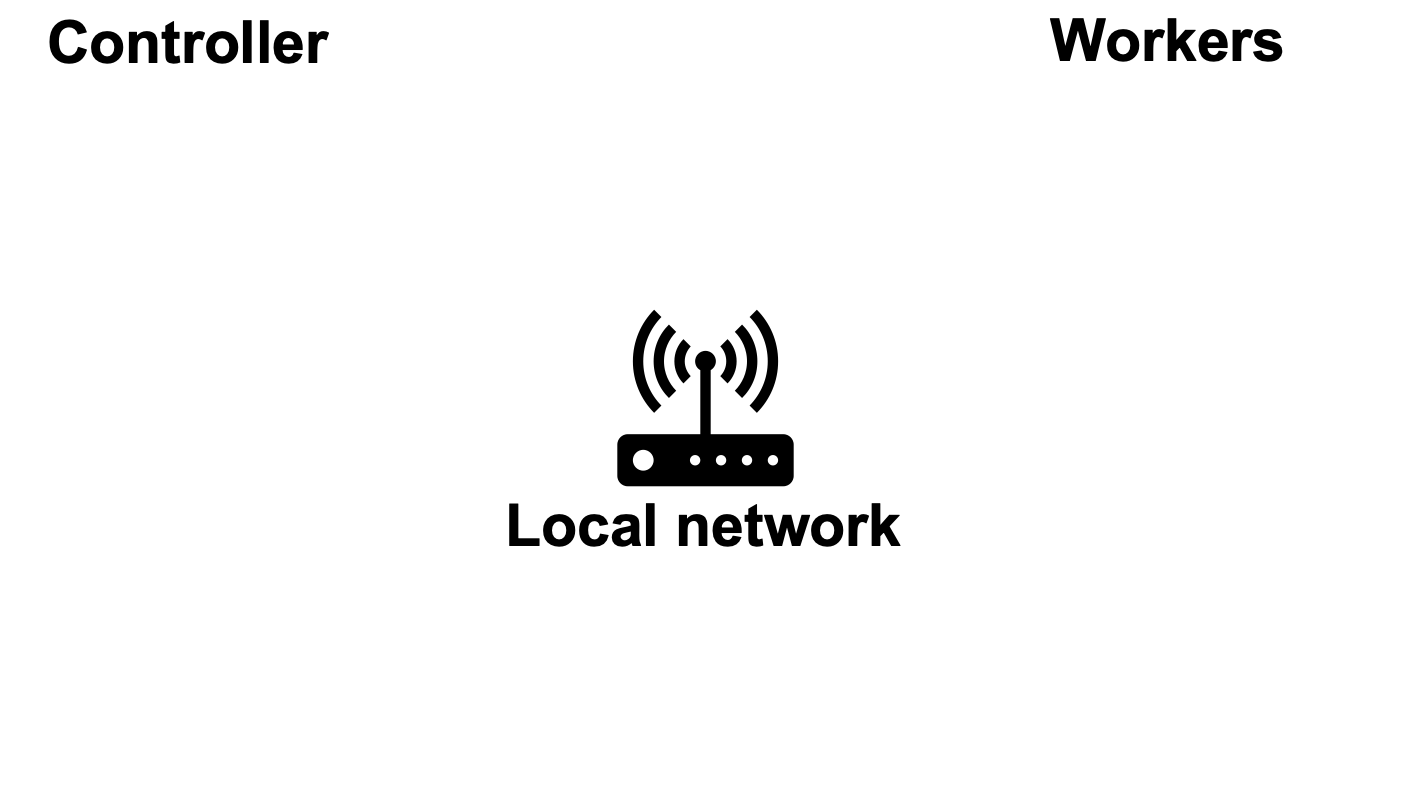

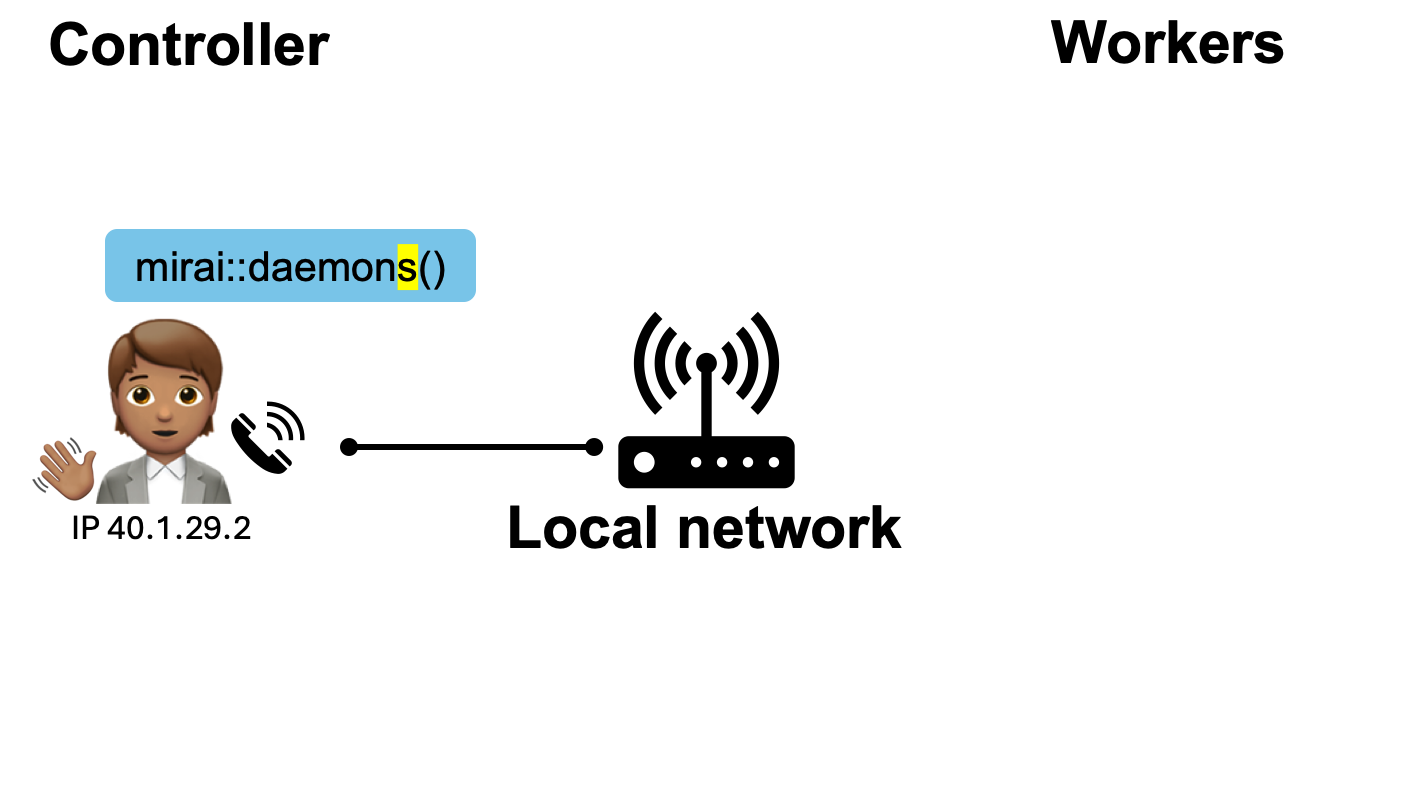

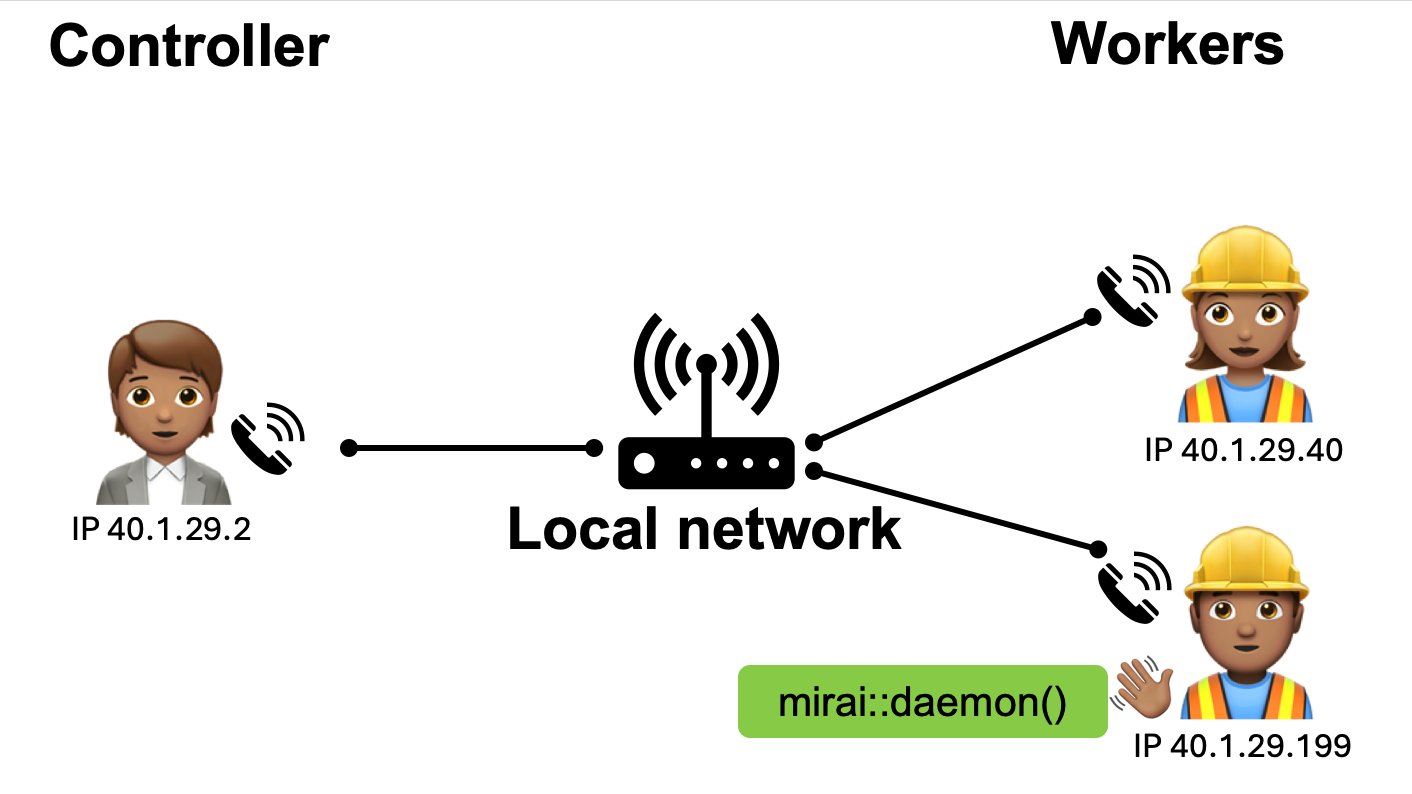

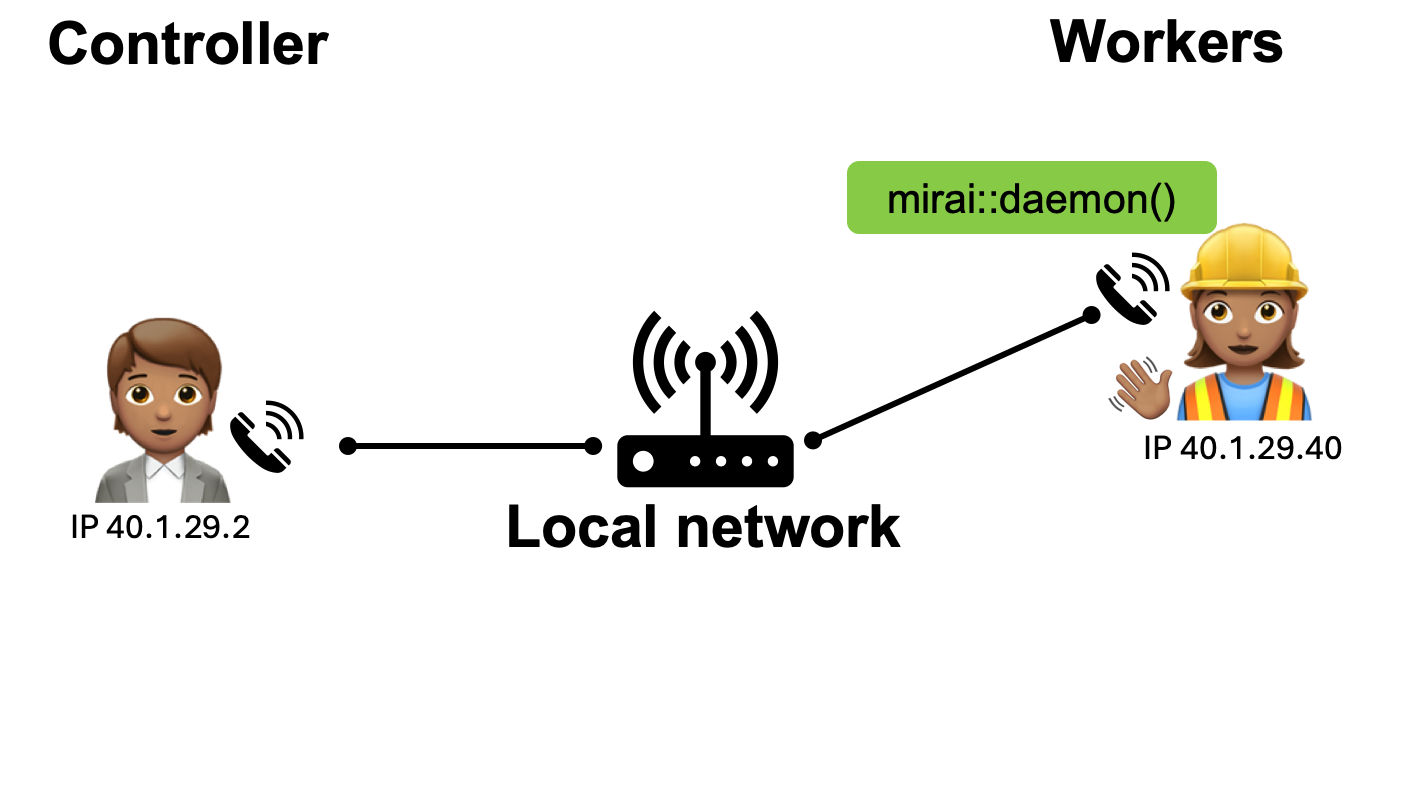

Low-overhead communication

Low-overhead communication

Low-overhead communication

Low-overhead communication

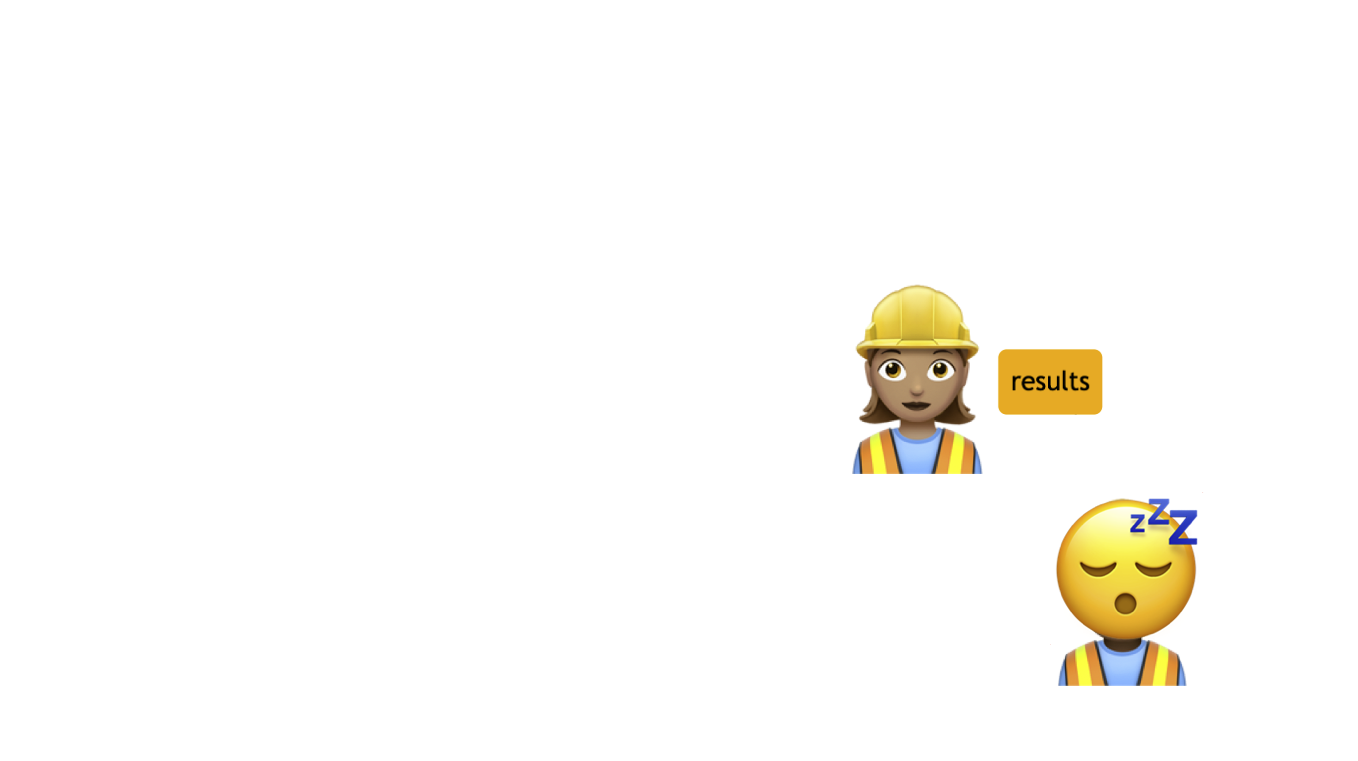

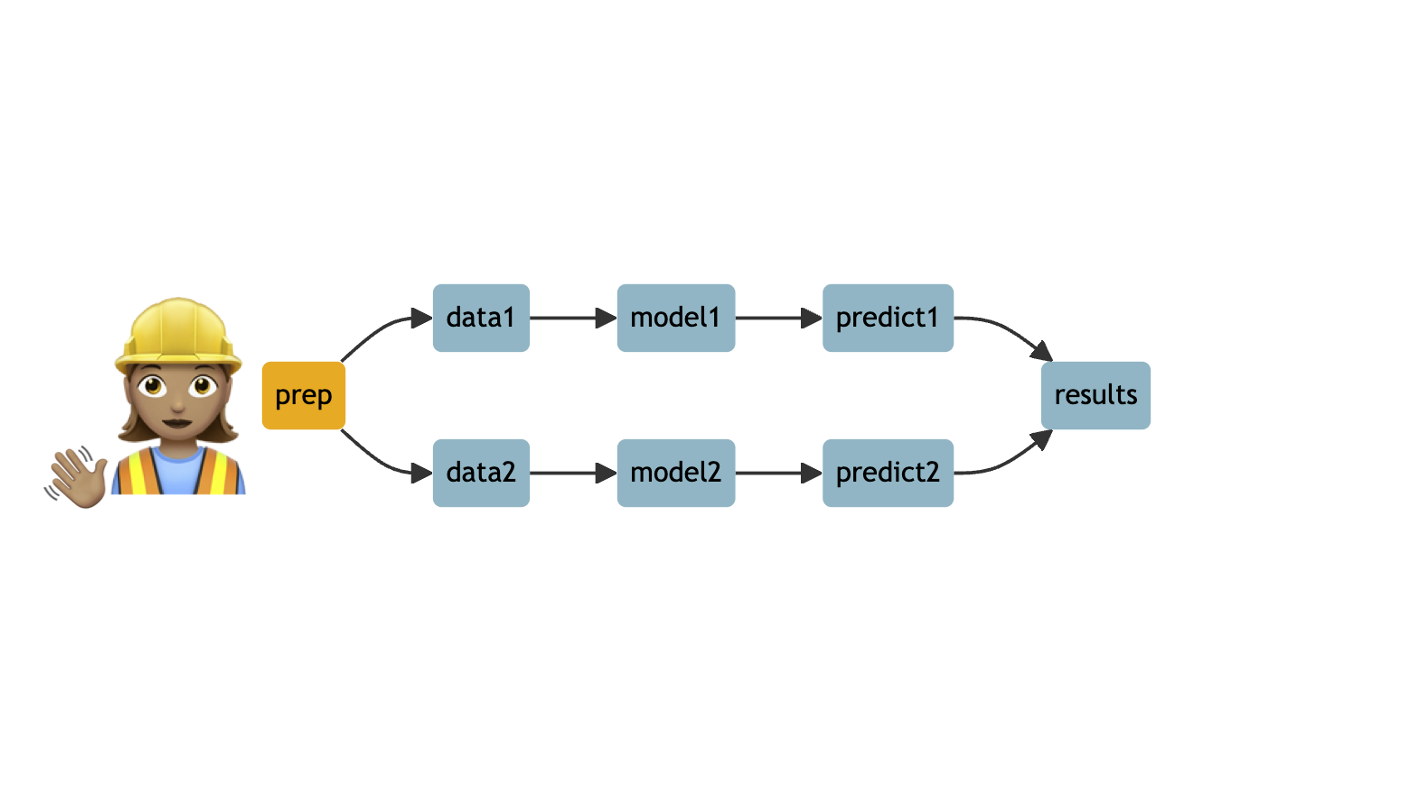

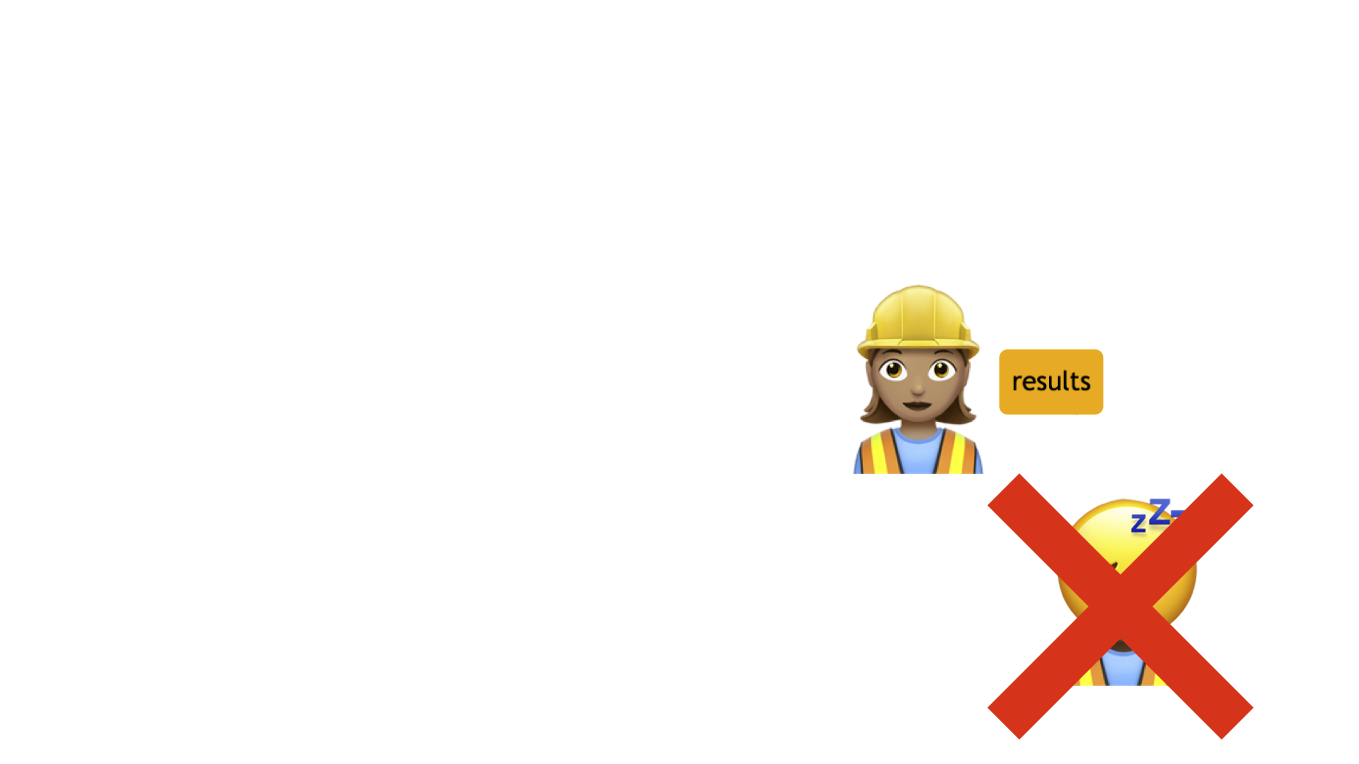

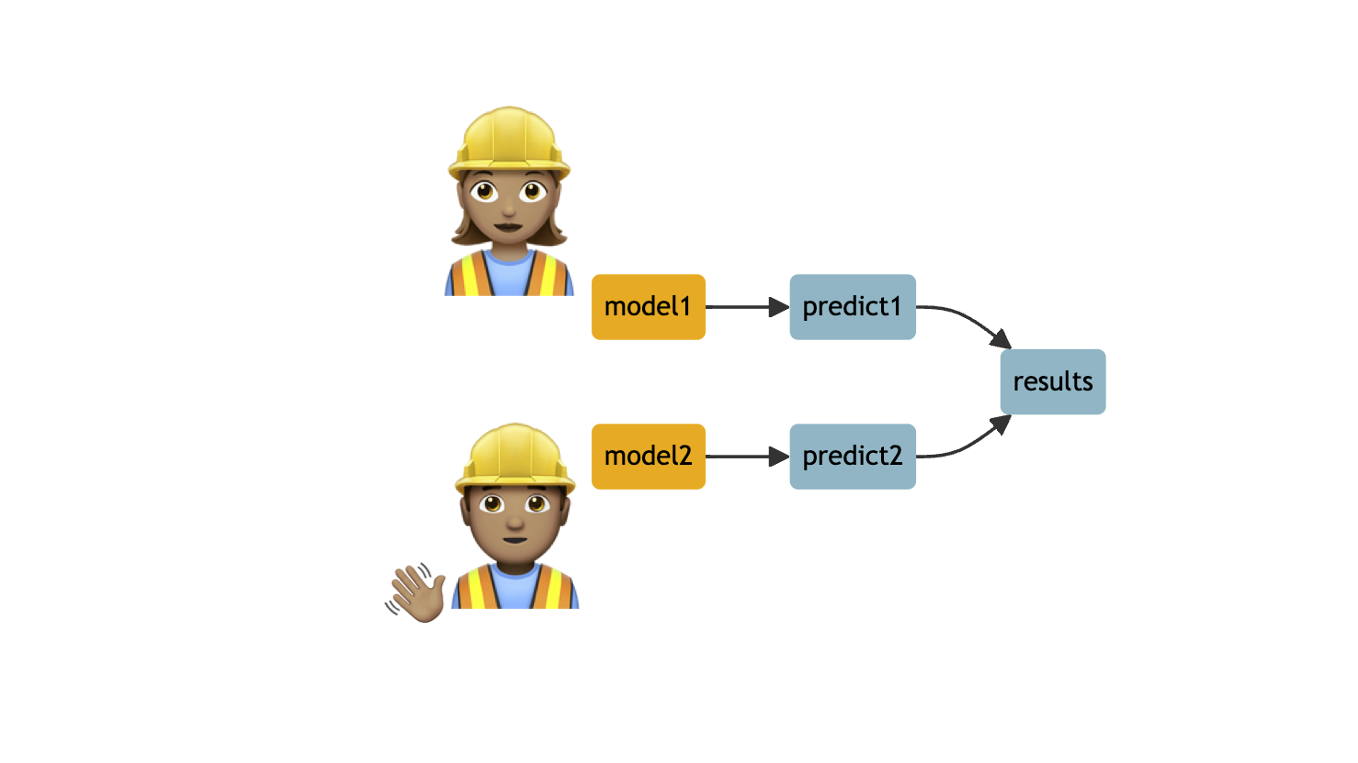

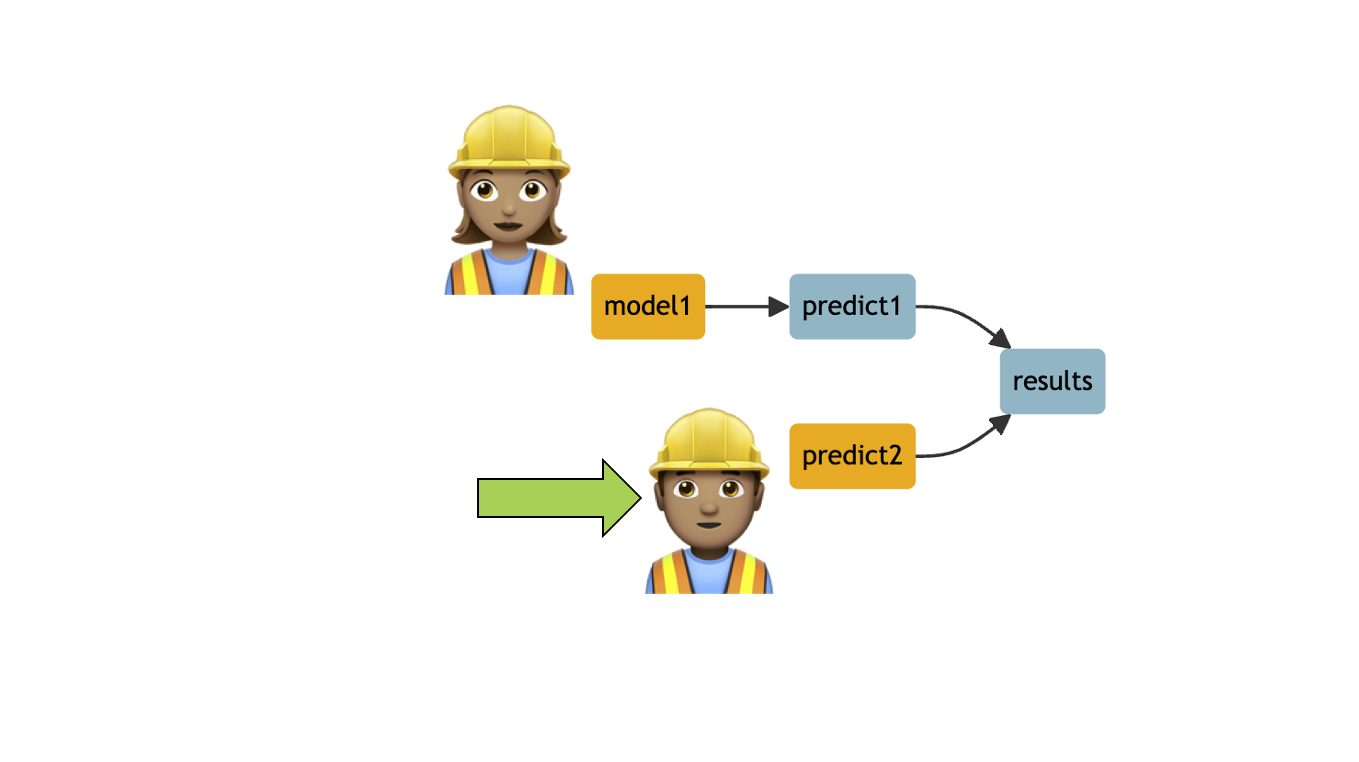

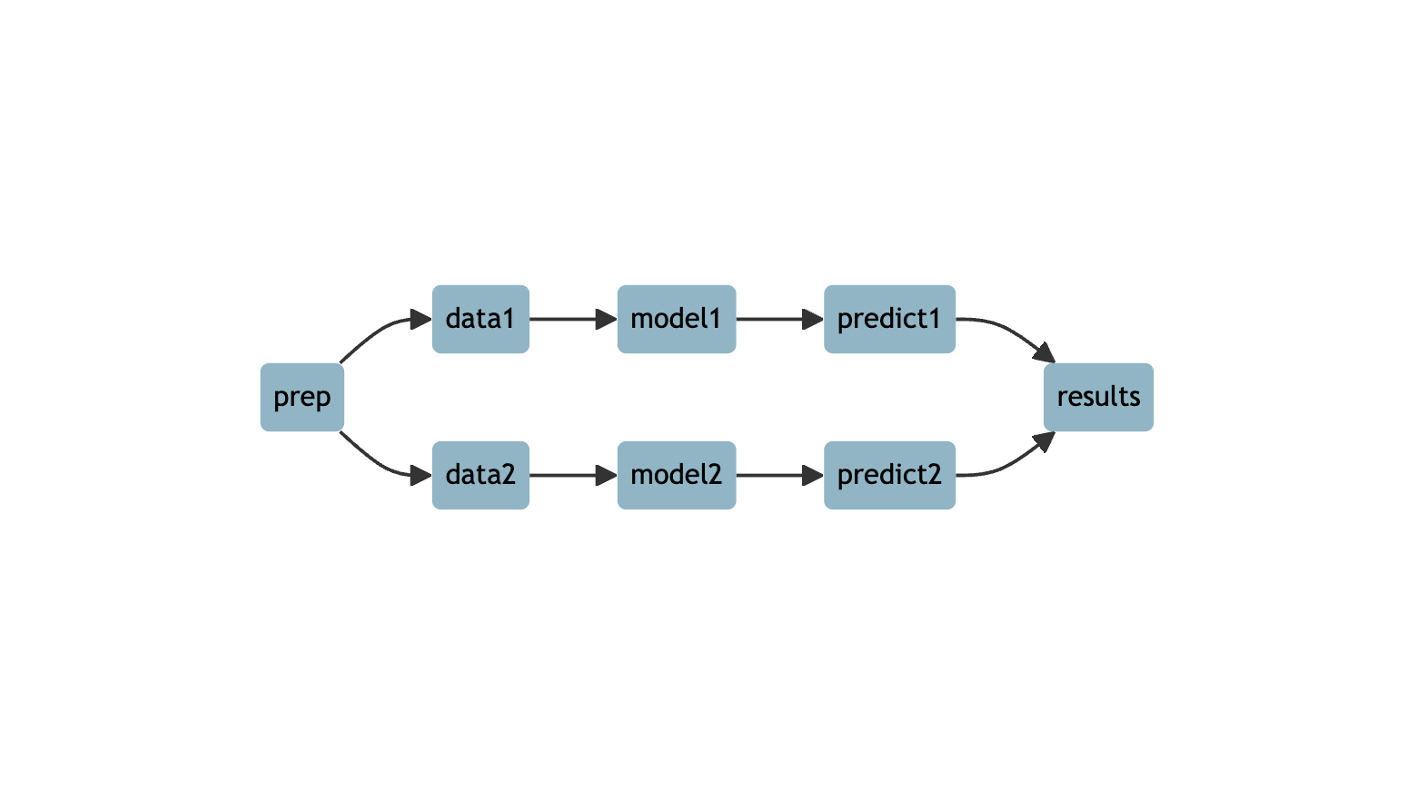

Auto-scaling reduces overhead & cost

Auto-scaling reduces overhead & cost

Auto-scaling reduces overhead & cost

Auto-scaling reduces overhead & cost

Auto-scaling reduces overhead & cost

Auto-scaling reduces overhead & cost

Simple controller interface

# New controller

controller <- crew_controller_local(
  workers = 2,
  seconds_idle = 10,
  tasks_max = Inf
)

Simple controller interface

# Submit a task.

controller$push(1 + 1)

Simple controller interface

# Get the result.

controller$pop()

AWS Batch plugin

crew_controller_aws_batch(
  workers = 100,
  seconds_idle = 120,
  aws_batch_job_definition = "DEF",
  aws_batch_job_queue = "QUEUE",
  port = 57000 # +TCP in security group
)

• Write your own plugins: https://wlandau.github.io/crew/articles/plugins.html

Parallel + async in Shiny

observeEvent(input$button, {
  replicate(1000,
    controller$push(flip_coin(), ...) %...>%
      collect_flips(controller, ...)
  )
})

crew accelerates targets

#_targets.R file

tar_option_set(
  controller = crew_controller_aws_batch(
    workers = 100,
    seconds_idle = 120,
    aws_batch_job_definition = "DEF",
    aws_batch_job_queue = "QUEUE",
    port = 57000 # +TCP in security group
  )
)

• https://books.ropensci.org/targets/crew.html

Recap

• mirai is parallel and first-class async
• crew plugs mirai into heavy-duty platforms

Thanks

https://wlandau.github.io/posit2024
