A rediscovery from different field

Will Landau

Background

• Training:
  • Bayesian Statistics
  • Iowa State University, 2011-2016
• Career:
  • Methods and tools for clinical trials
  • Eli Lilly and Company, 2016-present

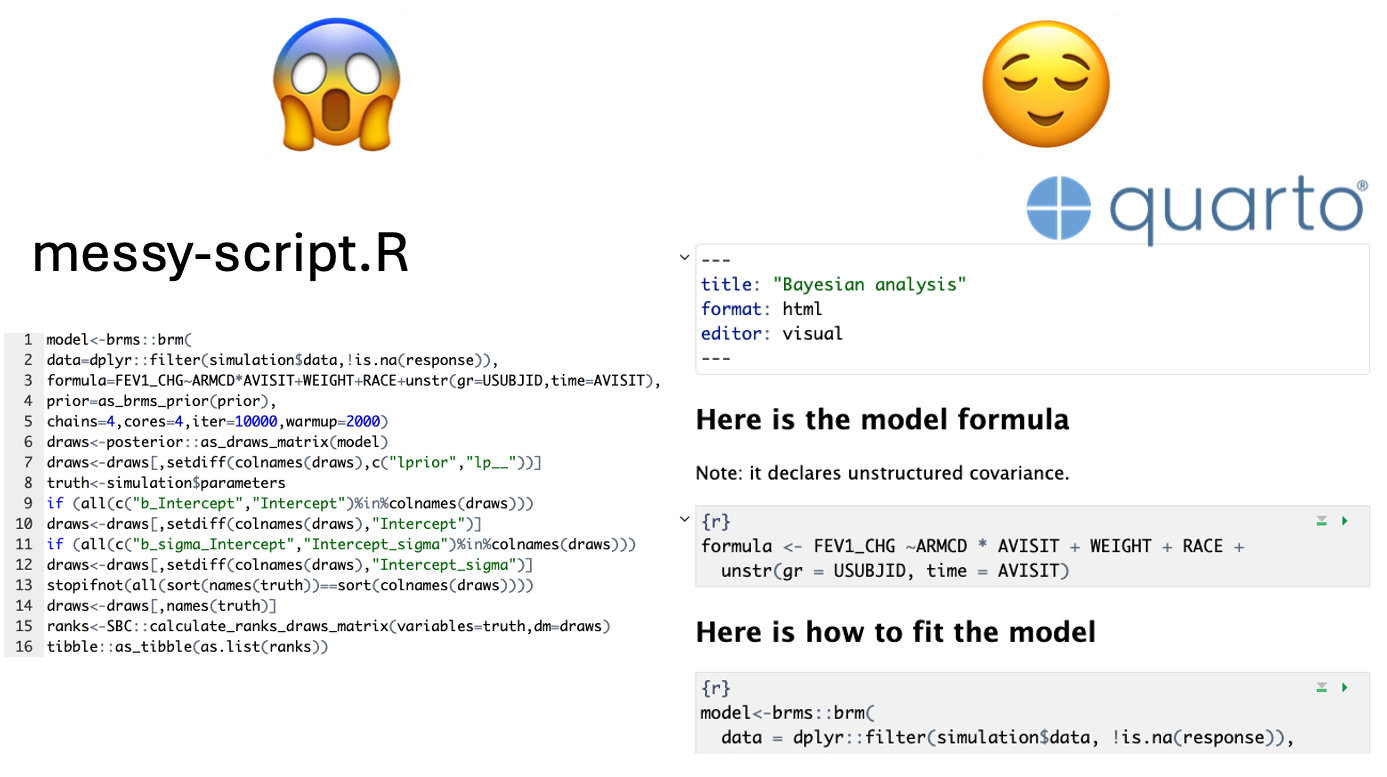

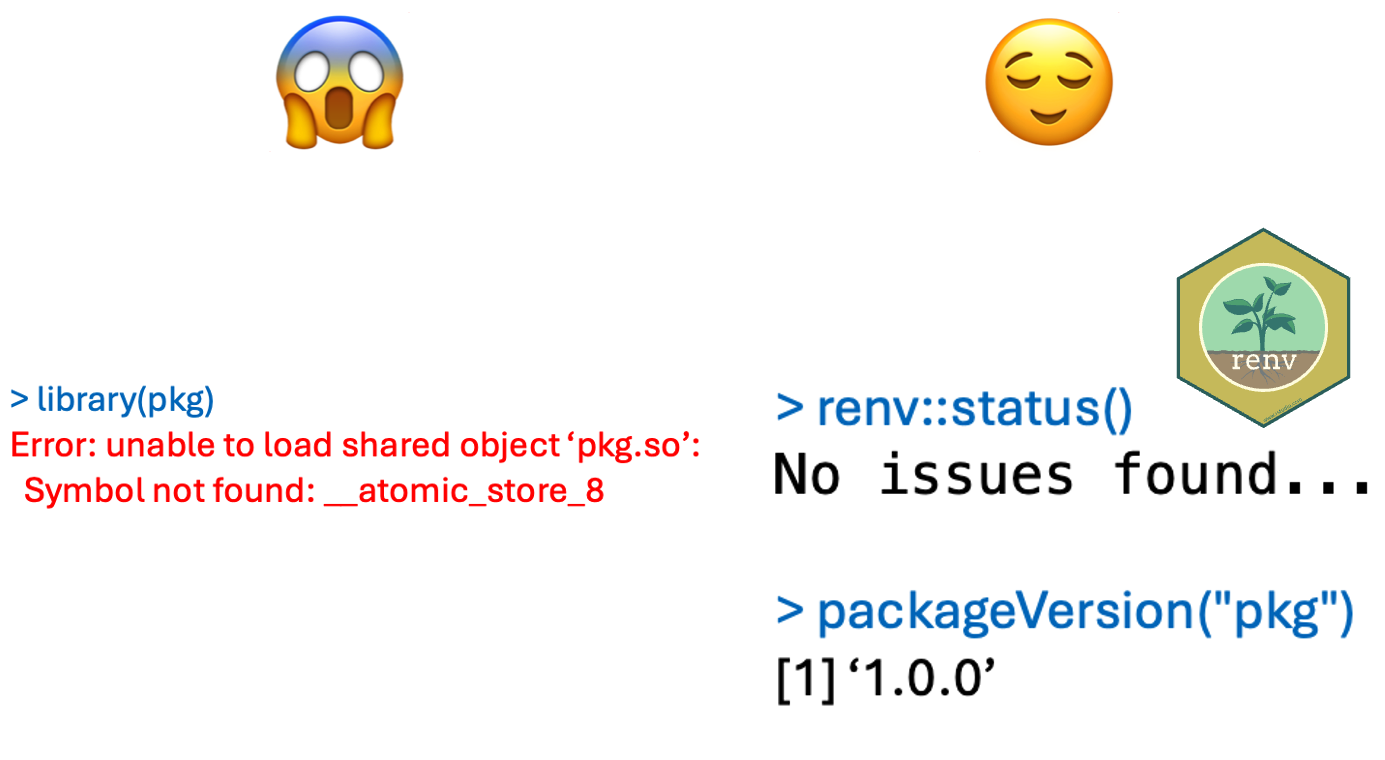

Hidden problems with non-statistical solutions

Hidden problems with non-statistical solutions

Hidden problems with non-statistical solutions

Hidden problems with non-statistical solutions

Hidden problems with non-statistical solutions

Hidden problems with non-statistical solutions

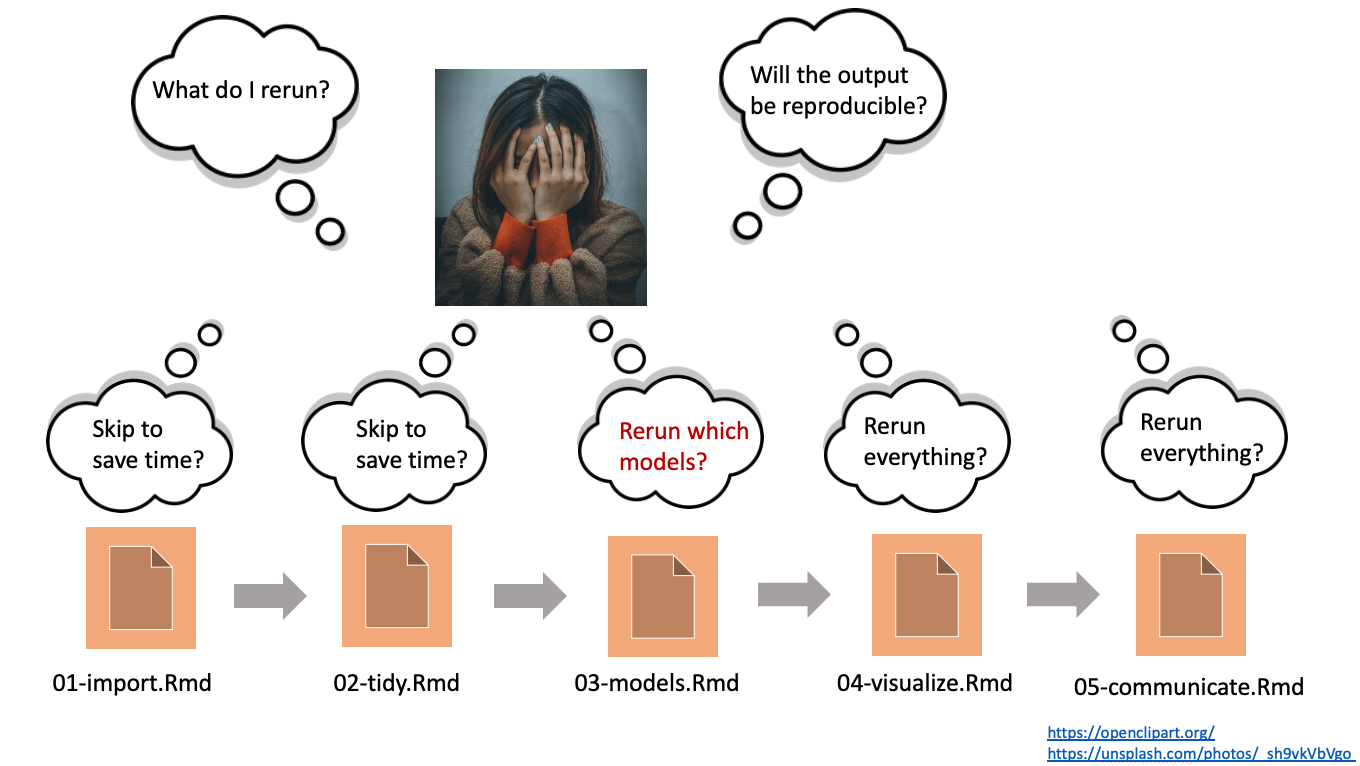

Repetition and long computation

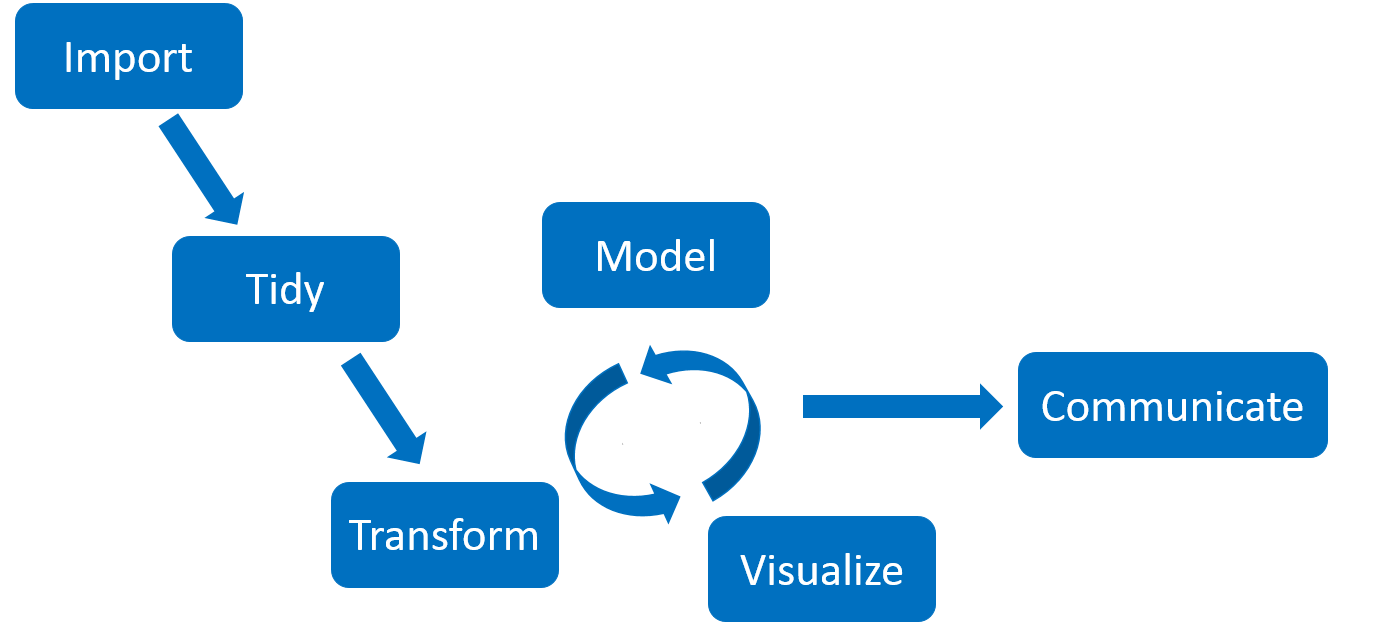

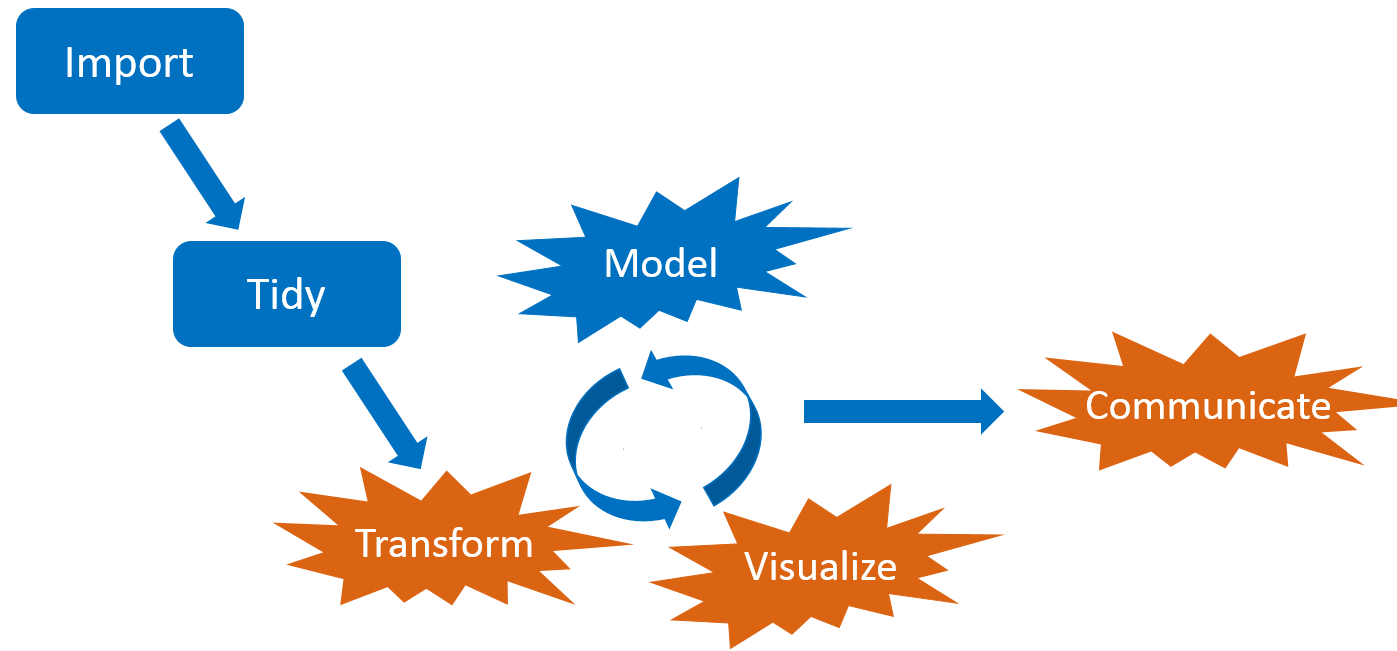

Workflows have interconnected steps.

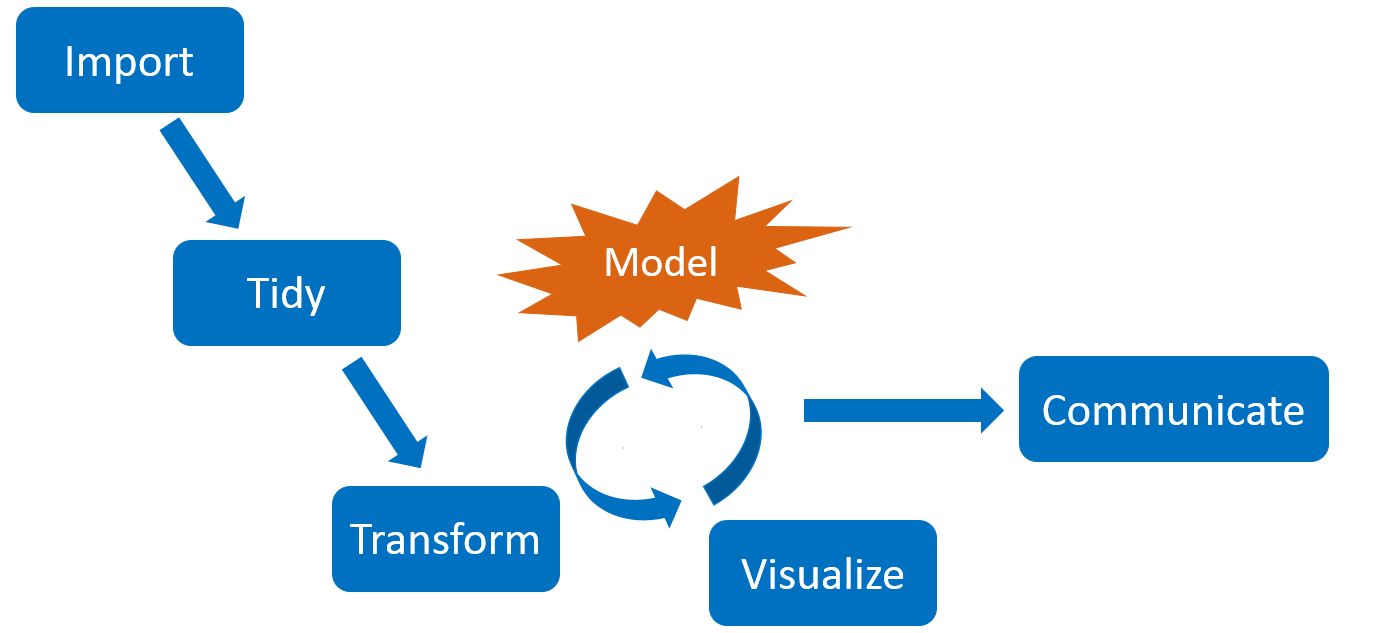

If you change code or data…

…the downstream steps are no longer valid.

Dilemma: short runtimes or reproducible results?

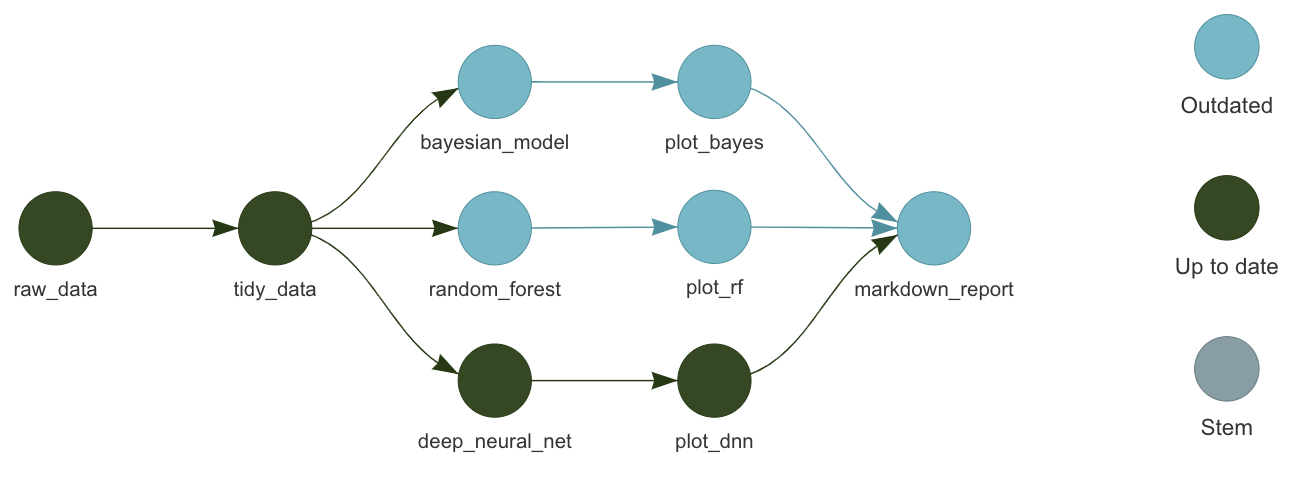

Pipelines to the rescue!

• A pipeline is a collection of computational steps.
• Each step can depend on previous steps.
• Run upstream dependencies before downstream steps.
• Skip steps whose code and dependencies did not change.

Let a pipeline tool figure out what to rerun.

• Save time while ensuring computational reproducibility.
• Automatic parallel/distributed computing based on the directed acyclic graph.

Pipeline tools

• Existing pipeline tools: https://github.com/pditommaso/awesome-pipeline
• Most not designed for classical Statistics.
• Most are language-agnostic or designed for Python or the shell.

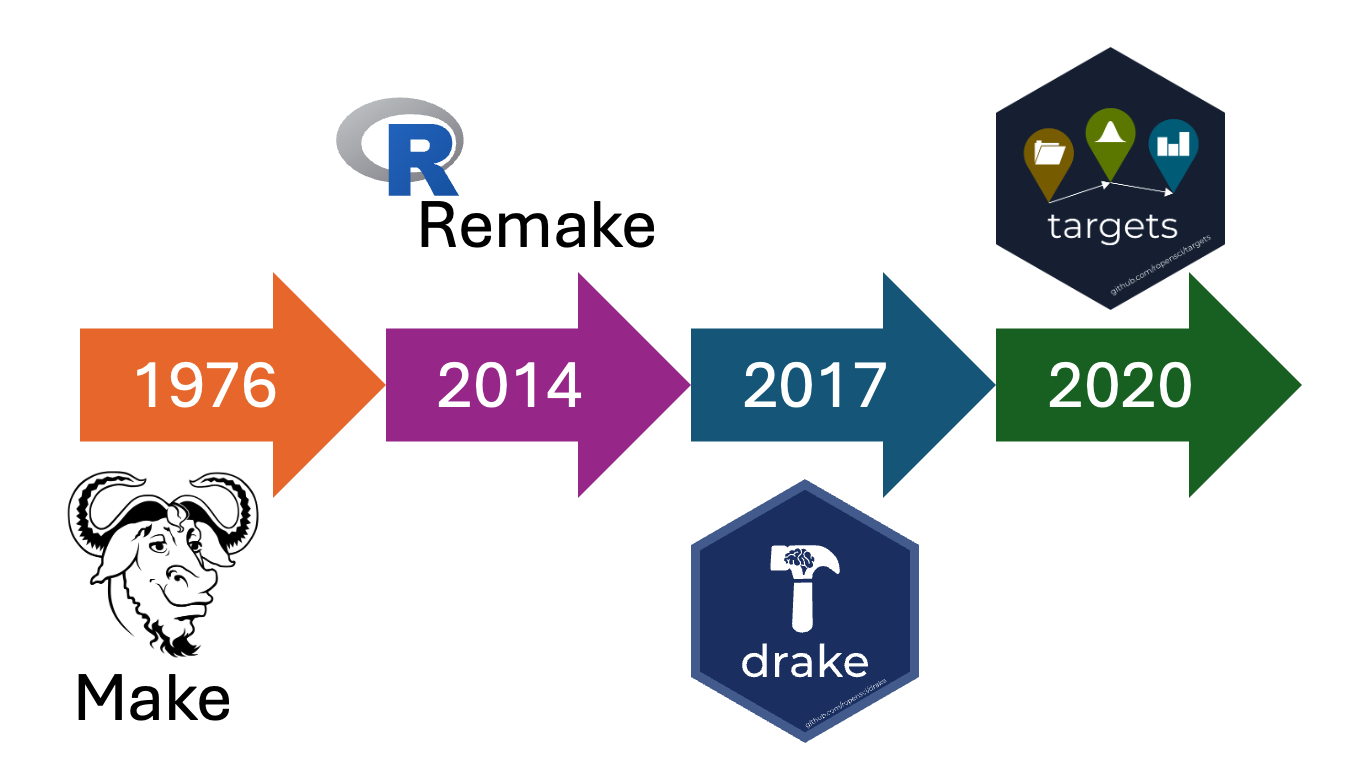

Make-like pipelines for Statistics

targets

• Fundamentally designed for R.
• Supports a clean, modular, function-oriented style.
• Abstracts files as R objects and automatically manages data.

How to use targets

1. Write functions.
2. Define the pipeline in _targets.R.
3. Understand the pipeline.
4. Run the pipeline.
5. Inspect results.
6. Iterate as needed.

Simple example: air quality analysis

Simple example: air quality analysis

library(dplyr)
library(ggplot2)
library(readr)

data <- read_csv("data.csv", col_types = cols()) %>%
  filter(!is.na(Ozone))

# ...

Simple example: air quality analysis

# ...
model <- lm(Ozone ~ Temp, data = data) %>%
  coef()

plot <- ggplot(data) +
  geom_point(aes(x = Temp, y = Ozone)) +
  geom_abline(intercept = model[1], slope = model[2]) +
  theme_gray(24)

Simple example: air quality analysis

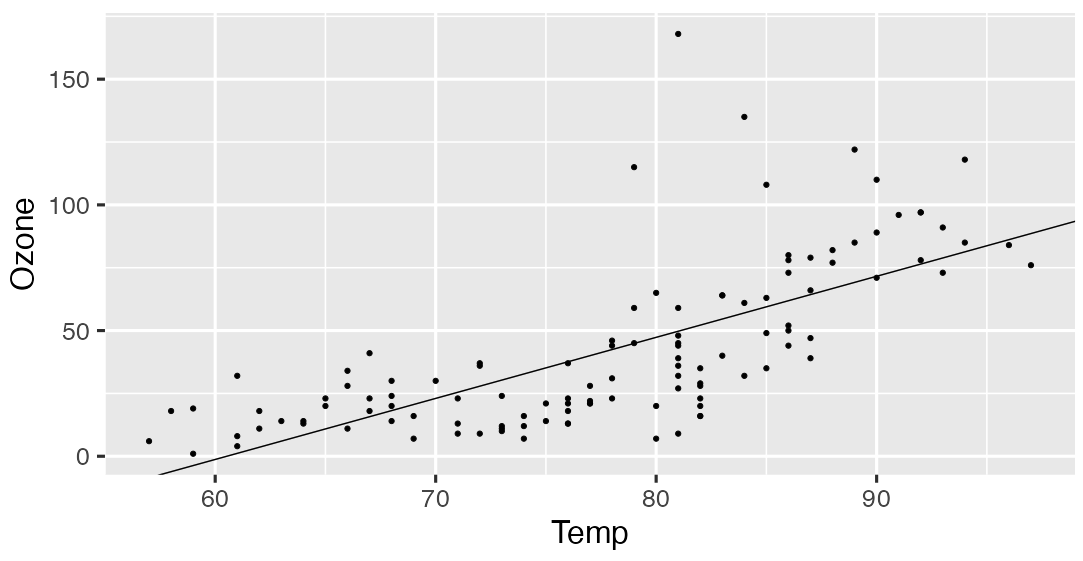

plot

Step 1: Write functions.

• Everything that exists in an object.
• Everything that happens is a function call.

John Chambers

1. Idiomatic (natural expression of R)
2. Clear
   • Break down complicated ideas in to manageable pieces.
   • Personal shorthand
3. Reusable: define once, call from wherever.

Step 1: Write functions.

# R/functions.R
process_data <- function(file) {
  read_csv(file, col_types = cols()) %>%
    filter(!is.na(Ozone))
}

fit_model <- function(data) {
  lm(Ozone ~ Temp, data = data) %>%
    coef()
}
# ...

Step 1: Write functions.

# ...
plot_results <- function(data, model) {
  ggplot(data) +
    geom_point(aes(x = Temp, y = Ozone)) +
    geom_abline(
      intercept = model[1],
      slope = model[2]
    ) +
    theme_gray(24)
}

Step 2: Define the pipeline in _targets.R.

library(targets)
tar_option_set(
  packages = c("dplyr", "ggplot2", "readr")
)
tar_source()
list(
  tar_target(file, "data.csv", format = "file"),
  tar_target(data, process_data(file)),
  tar_target(model, fit_model(data)),
  tar_target(plot, plot_results(data, model))
)

• use_targets() generates a template _targets.R file.
• Call tar_edit() to edit _targets.R.

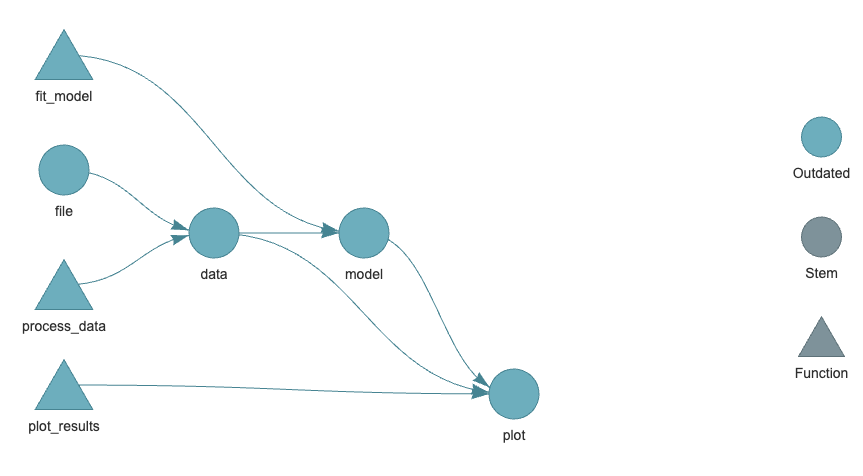

Step 3: Understand the pipeline.

tar_visnetwork()

Step 3: Understand the pipeline.

tar_manifest()
#> # A tibble: 4 × 2
#>   name  command
#>   <chr> <chr>
#> 1 file  "\"data.csv\""
#> 2 data  "process_data(file)"
#> 3 model "fit_model(data)"
#> 4 plot  "plot_results(data, model)"

Step 3: Understand the pipeline.

tar_outdated()
#> [1] "file"  "plot"  "data"  "model"

Step 4: Run the pipeline.

tar_make()
#> ▶ dispatched target file
#> ● completed target file [0.098 seconds]
#> ▶ dispatched target data
#> ● completed target data [0.068 seconds]
#> ▶ dispatched target model
#> ● completed target model [0.002 seconds]
#> ▶ dispatched target plot
#> ● completed target plot [0.011 seconds]
#> ▶ ended pipeline [0.271 seconds]

Step 5: Inspect results.

tar_read(model)
#> (Intercept)        Temp
#> -146.995491    2.428703

Step 5: Inspect results.

tar_read(plot)

Step 6: Iterate as needed.

plot_results <- function(data, model) {
  ggplot(data) +
    geom_point(aes(x = Temp, y = Ozone))
    geom_abline(
      intercept = model[1],
      slope = model[2],
      color = "blue",
      linewidth = 2
    ) +
    theme_gray(24)
}

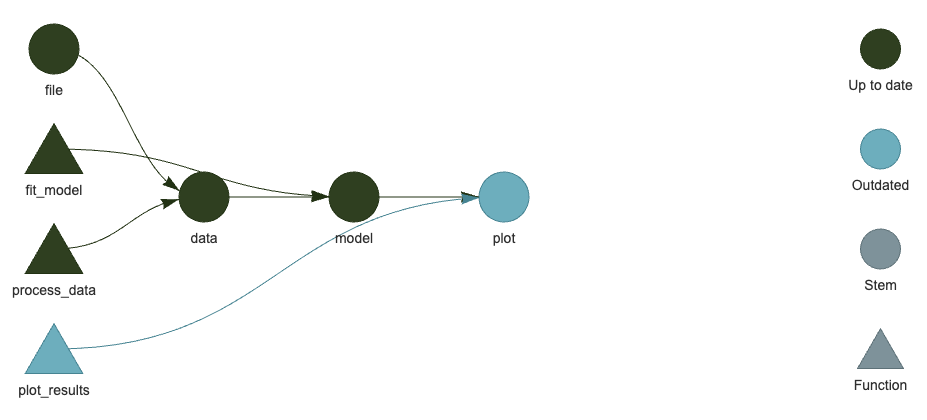

Step 6: Iterate as needed.

tar_visnetwork()

Step 6: Iterate as needed.

tar_outdated()
#> [1] "plot"

Step 6: Iterate as needed.

tar_make()
#> ✔ skipped target file
#> ✔ skipped target data
#> ✔ skipped target model
#> ▶ dispatched target plot
#> ● completed target plot [0.009 seconds]
#> ▶ ended pipeline [0.376 seconds]

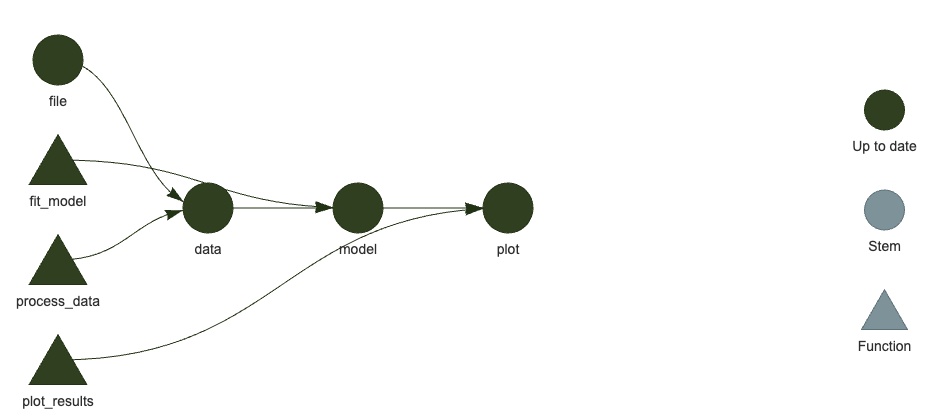

Step 6: Iterate as needed.

tar_visnetwork()

Step 6: Iterate as needed.

tar_outdated()
#> character(0)

tar_make()
#> ✔ skipped target file
#> ✔ skipped target data
#> ✔ skipped target model
#> ✔ skipped target plot
#> ✔ skipped pipeline [0.053 seconds]

Formidable example: Bayesian model validation

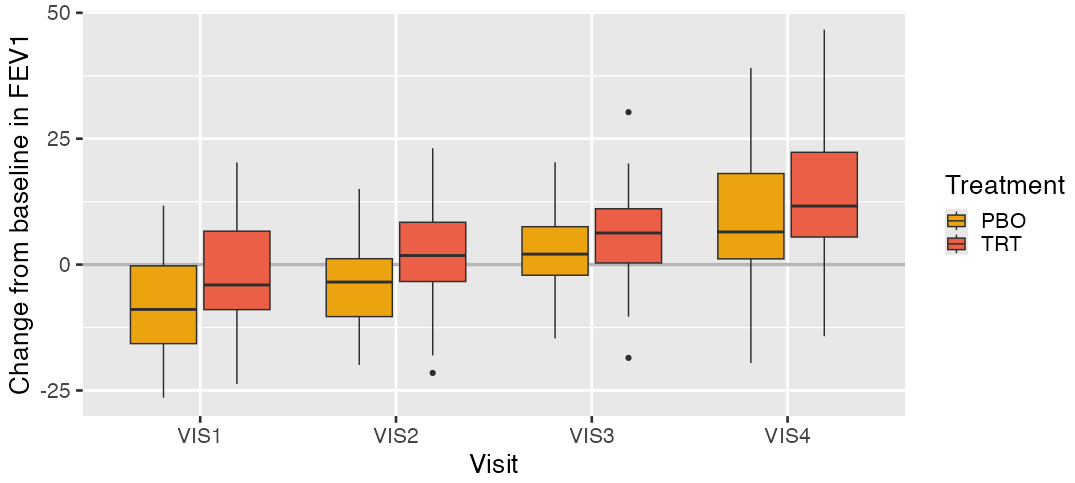

Bayesian MMRM

• MMRM = mixed model for repeated measures.
• Longitudinal data with continuous outcomes.
• Bayesian version used in clinical trials in neuroscience and pulmonology.

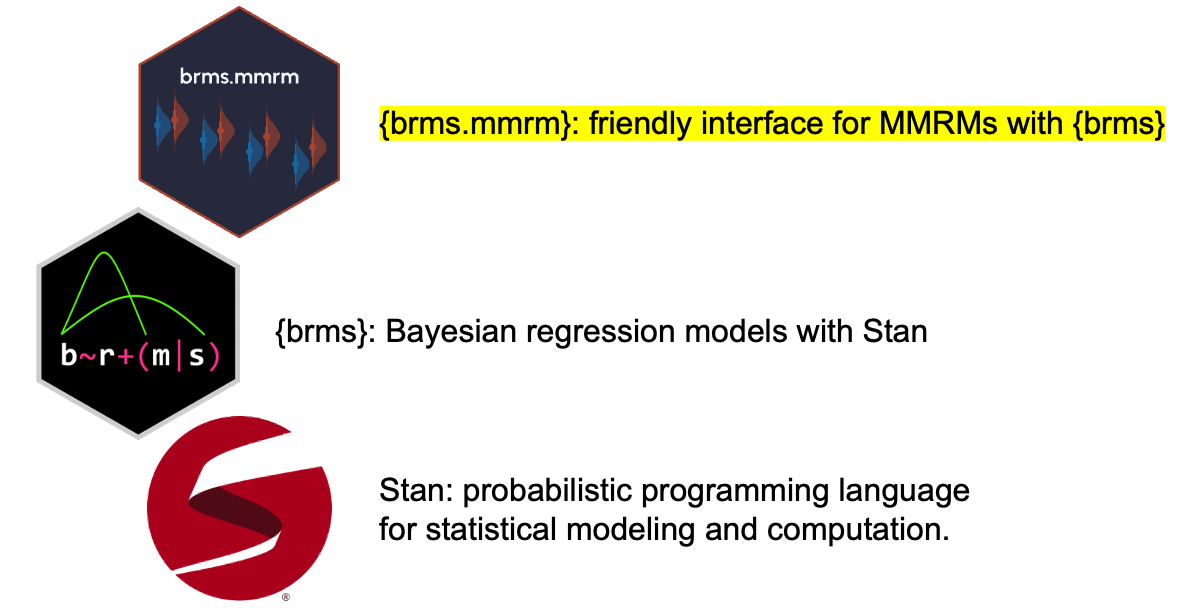

Implementation

Computational demands of Stan

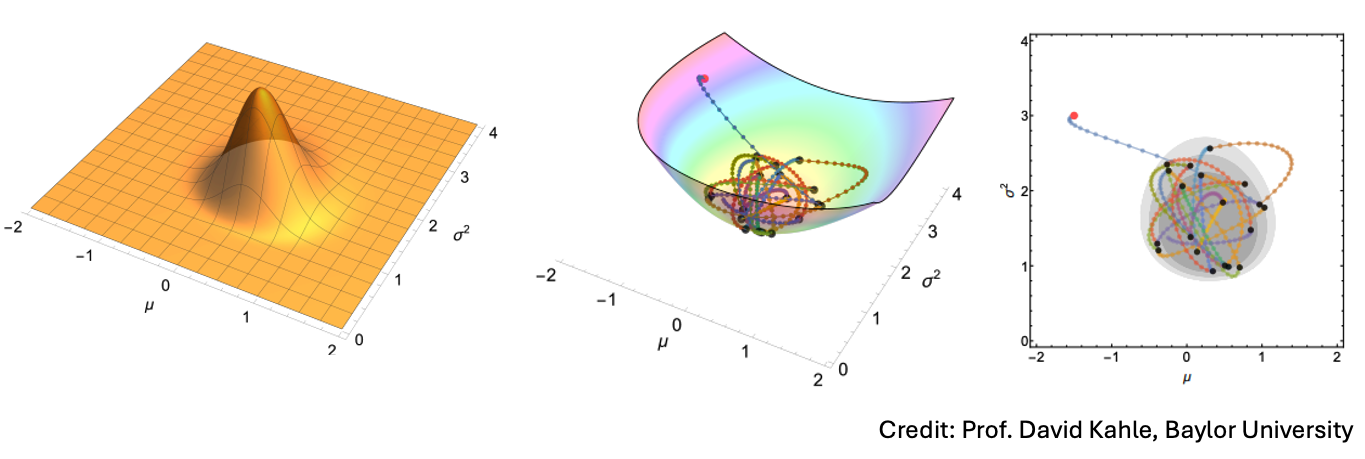

• Stan uses Hamiltonian Monte Carlo (HMC) to draw from the posterior distribution.
• HMC is based on a physics simulation!

Computational demands of Stan

• MMRMs are moderately high-dimensional.
• Could take several minutes or hours to fit a single model!

Validation: simulation-based calibration (SBC) checking

• Problem: easy to simulate data correctly, hard to model it correctly.
• Idea: design a simulation where the (estimated) posterior is the same as the (simulated) prior. (Modrák et al. (2023))
• Repeat thousands of times:

\[ \begin{aligned} \theta^{\text{sim}} &\sim p(\theta) \qquad &&\text{1. Draw parameters from the prior.} \\ y^{\text{sim}} &\sim p(y | \theta^{\text{sim}}) \qquad &&\text{2. Draw data given parameters.} \\ \theta^{(1)}, \ldots, \theta^{(M)} &\sim p(\theta | y^{\text{sim}}) \qquad &&\text{3. Draw HMC samples from the posterior} \\ \end{aligned} \]

• Equivalent to integrating out \(\theta^{\text{sim}}\) and \(y^{\text{sim}}\) to get the prior back:

\[ p(\theta) = \int \int p(\theta | y^{\text{sim}}) p(y^{\text{sim}} | \theta^{\text{sim}}) p(\theta^{\text{sim}}) d \theta^{\text{sim}} d y^{\text{sim}} \]

• Use ranks \(\sum_{m = 1}^M I \left [ \theta^{(m)}_i < \theta^{\text{sim}}_i \right ]\) to check that the posterior and prior agree
  • Ranks should be uniformly distributed.

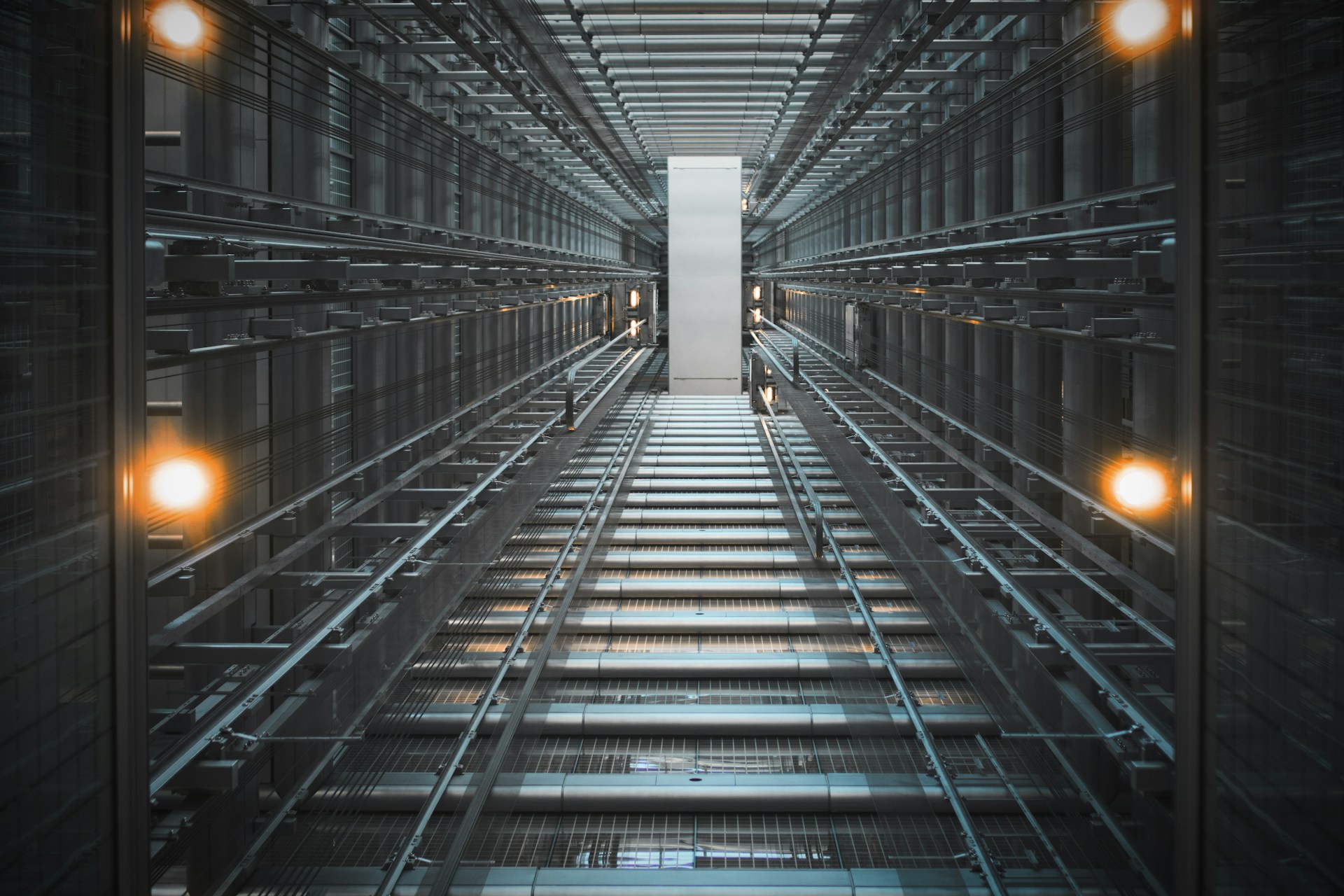

Too much work for one laptop

• Run 1000 replications for each of 6 modeling scenarios.
• For 2 of those scenarios, each rep takes over an hour.
  • Sequential computing would take over 3 months!
• Need distributed computing to run models in parallel.

Step 1: Write functions.

run_simulation <- function(
  scenario,
  prior,
  chains,
  warmup,
  iter
) {
  setup <- scenario()
  data <- setup$data
  formula <- setup$formula
  simulation <- setup$simulate(data, formula, prior)
  model <- brms.mmrm::brm_model(data, formula, prior, chains, "...")
  get_sbc_ranks(model, simulation)
}

• run_simulation() depends on get_sbc_ranks(), another user-defined function.

Step 2: Define the pipeline in _targets.R.

library(targets)
library(tarchetypes)

tar_option_set(
  storage = "worker",
  retrieval = "worker",
  memory = "transient",
  format = "qs",
  garbage_collection = TRUE,
  workspace_on_error = TRUE
)

# ...

Step 2: Define the pipeline in _targets.R.

library(targets)
library(tarchetypes)

tar_option_set(
  controller = crew.cluster::crew_controller_slurm(
    workers = 50,
    seconds_idle = 120,
    tasks_max = 3,
    script_lines = "module load R",
    slurm_memory_gigabytes_required = 4
  )
)

# ...

• Distributed computing is powered by packages crew and mirai.
• https://books.ropensci.org/targets/crew.html

Step 2: Define the pipeline in _targets.R.

# ...

tar_source() # Loads functions from scripts in R/

list(
  tar_map(
    values = scenarios,
    tar_target(name = prior, command = setup_prior(scenario)),
    tar_rep(
      name = ranks,
      command = run_simulation(scenario, prior),
      batches = 1000,
      reps = 1
    ),

# ...

Step 2: Define the pipeline in _targets.R.

# ...

    tar_target(
      results,
      save_fst(ranks, sprintf("results/%s.fst", name)),
      deployment = "main"
    )
  )
)

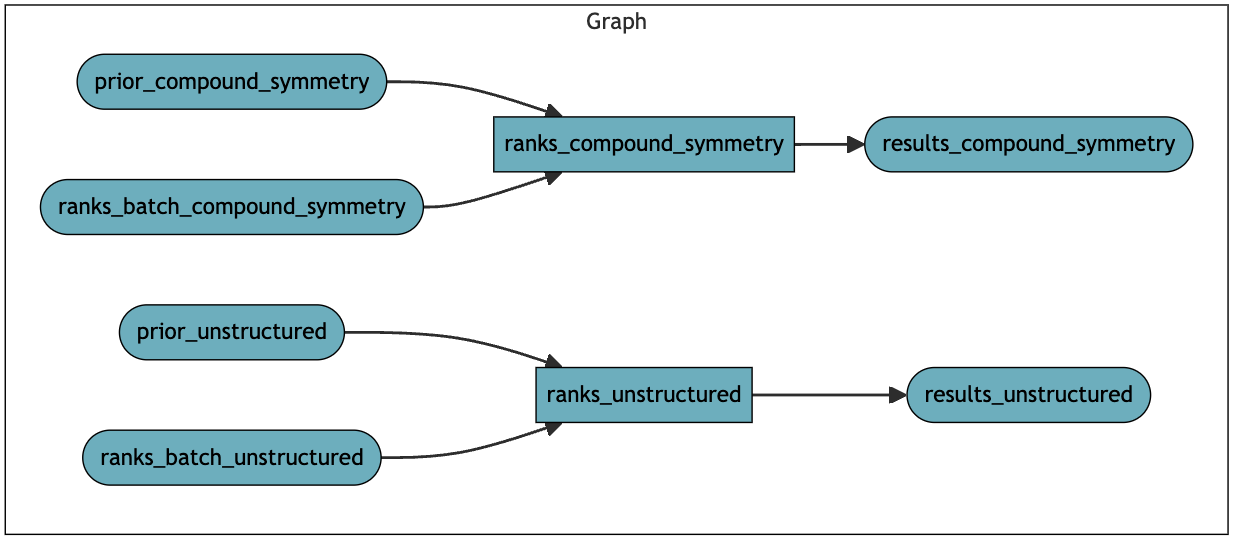

Step 3: Understand the pipeline.

tar_mermaid(
  targets_only = TRUE,
  names = contains(c("unstructured", "compound_symmetry"))
)

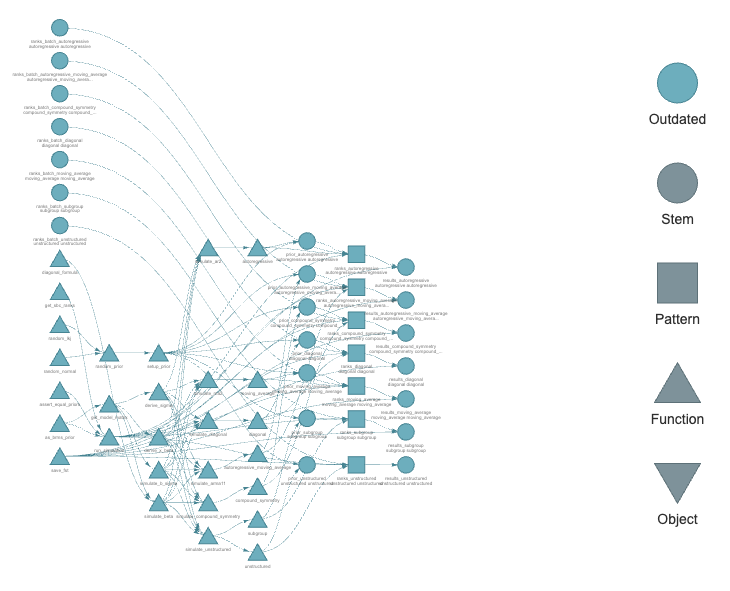

Step 3: Understand the pipeline.

tar_visnetwork()

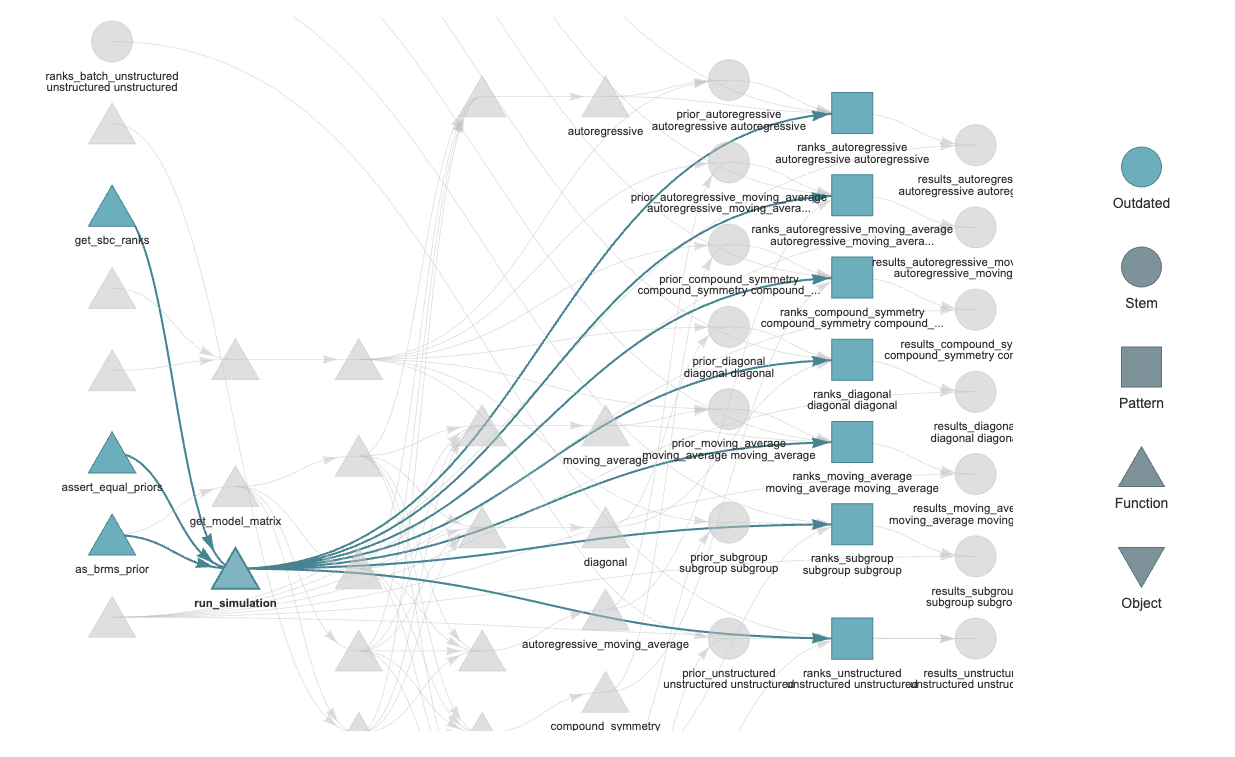

Step 3: Understand the pipeline.

• Highlight subgraphs (e.g. neighbors of run_simulation()).

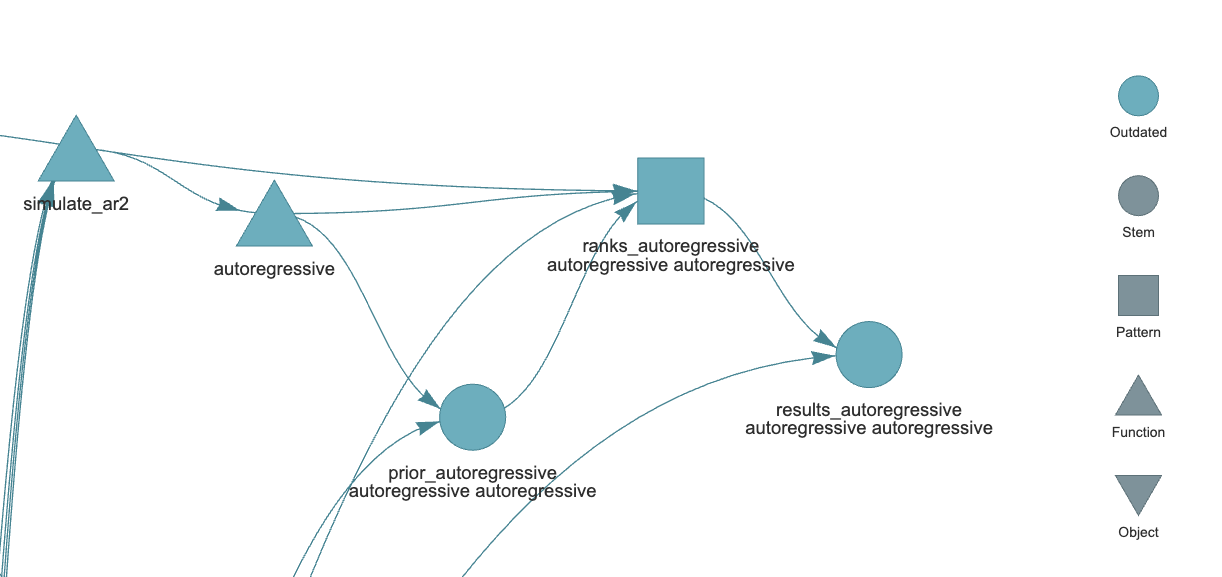

Step 3: Understand the pipeline.

• Zoom in, click, drag, etc.

Step 3: Understand the pipeline.

tar_outdated()
#>  [1] "ranks_batch_compound_symmetry"
#>  [2] "ranks_moving_average"
#>  [3] "ranks_diagonal"
#>  [4] "results_diagonal"
#>  [5] "prior_diagonal"
#>  [6] "ranks_batch_autoregressive"
#>  [7] "results_moving_average"
#>  [8] "prior_unstructured"
#>  [9] "prior_compound_symmetry"
#> [10] "results_subgroup"
#> [11] "prior_autoregressive_moving_average"
#> [12] "results_compound_symmetry"
#> [13] "results_autoregressive_moving_average"
#> [14] "ranks_subgroup"
#> [15] "ranks_compound_symmetry"
#> [16] "prior_autoregressive"
#> [17] "prior_moving_average"
#> [18] "ranks_batch_diagonal"
#> [19] "ranks_batch_subgroup"
#> [20] "ranks_autoregressive"
#> [21] "ranks_batch_moving_average"
#> [22] "ranks_batch_autoregressive_moving_average"
#> [23] "results_unstructured"
#> [24] "ranks_batch_unstructured"
#> [25] "results_autoregressive"
#> [26] "prior_subgroup"
#> [27] "ranks_autoregressive_moving_average"
#> [28] "ranks_unstructured"

Step 4: Run the pipeline.

tar_make()
#> ...
#> ▶ dispatched target prior_subgroup
#> ▶ dispatched target prior_moving_average
#> ▶ dispatched target prior_diagonal
#> ...
#> ▶ dispatched branch ranks_moving_average_0622a4a0a1459592
#> ▶ dispatched branch ranks_autoregressive_average_4d6e2b84dfce31bc
#> ● completed branch ranks_unstructured_391a8253aae8fc3e [1.321 hours]
#> ● completed branch ranks_unstructured_6fc2a563c4c2fecc [1.265 hours]
#> ...

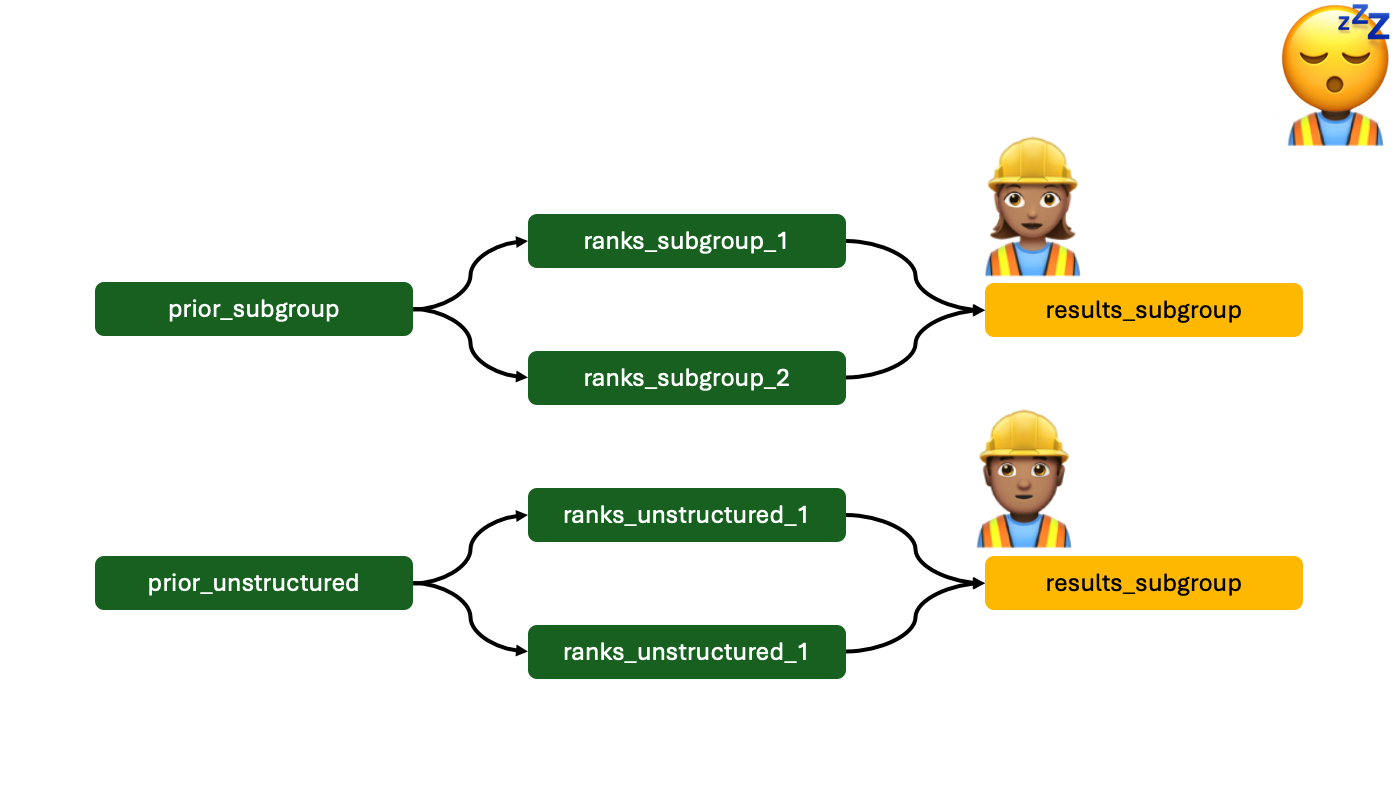

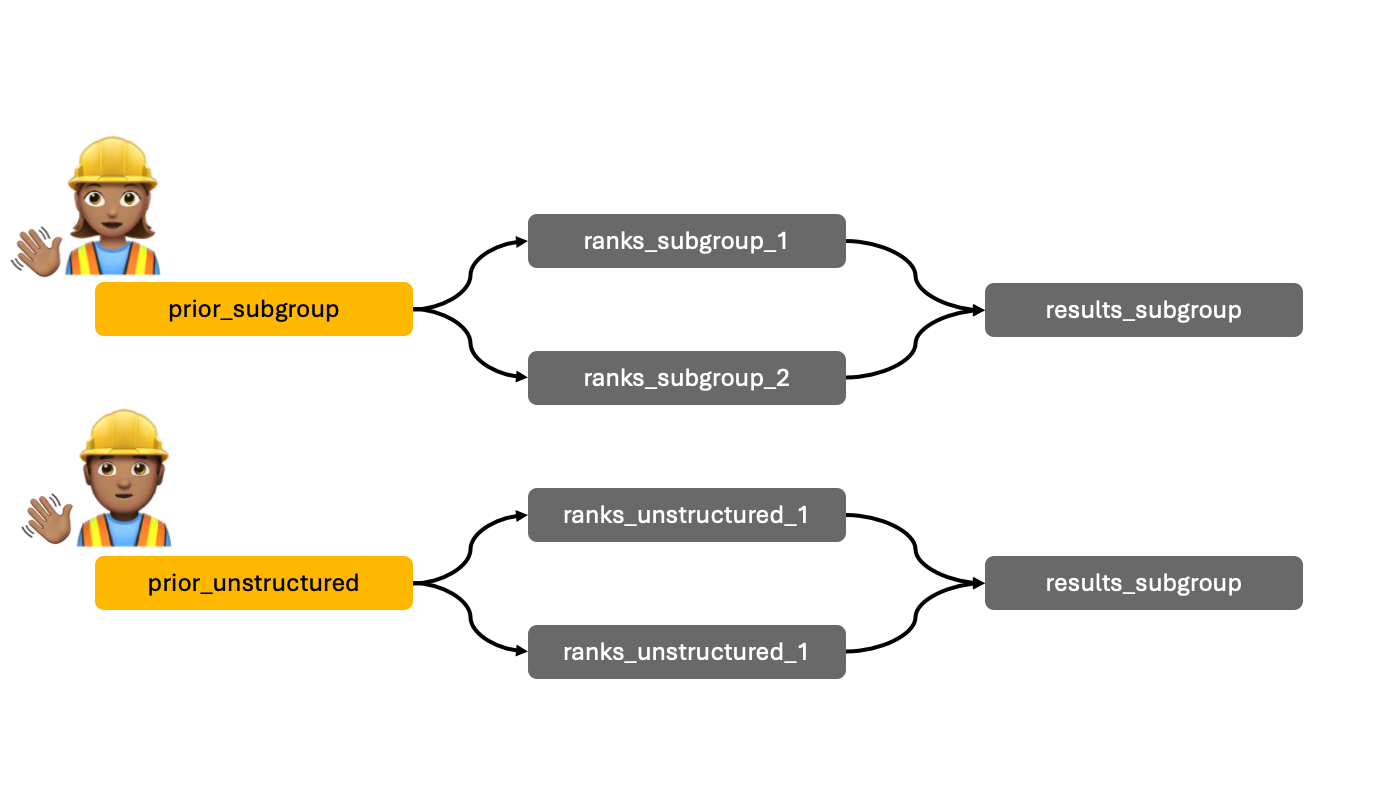

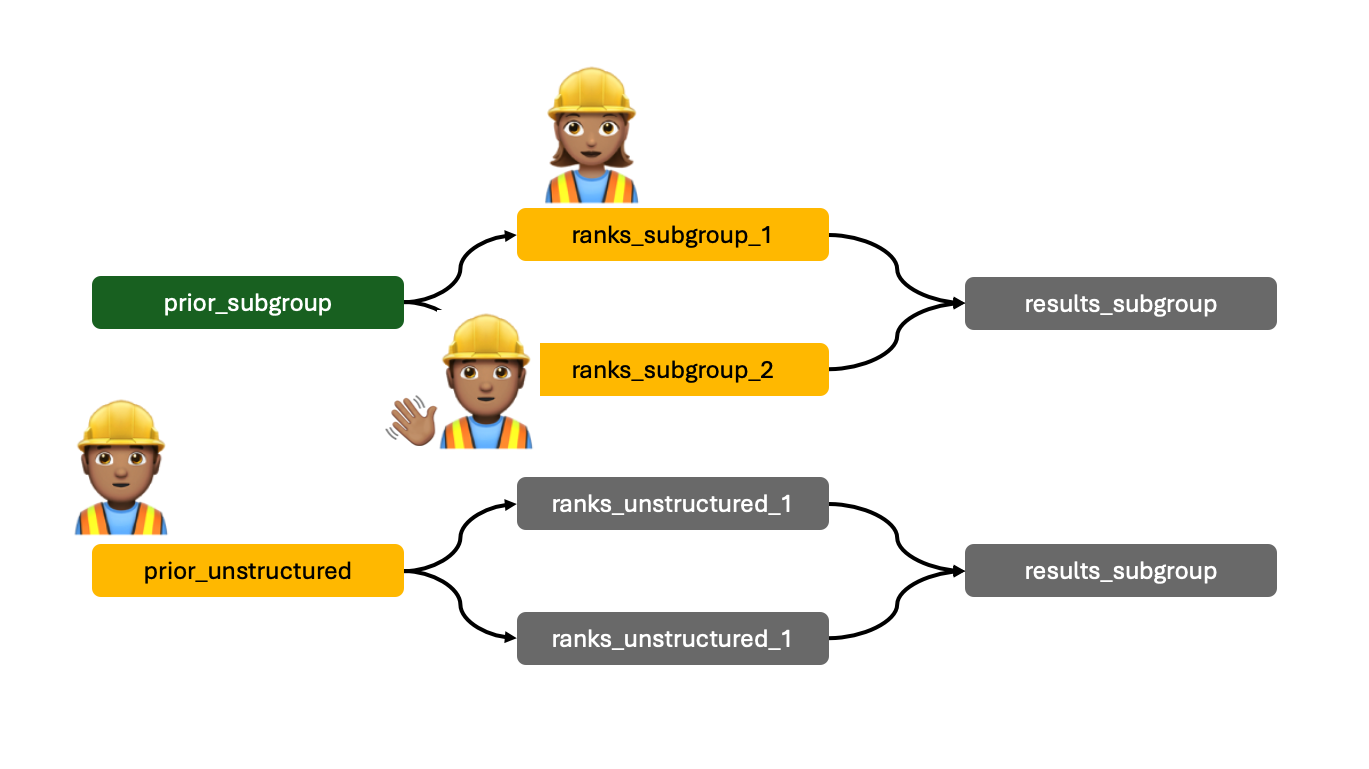

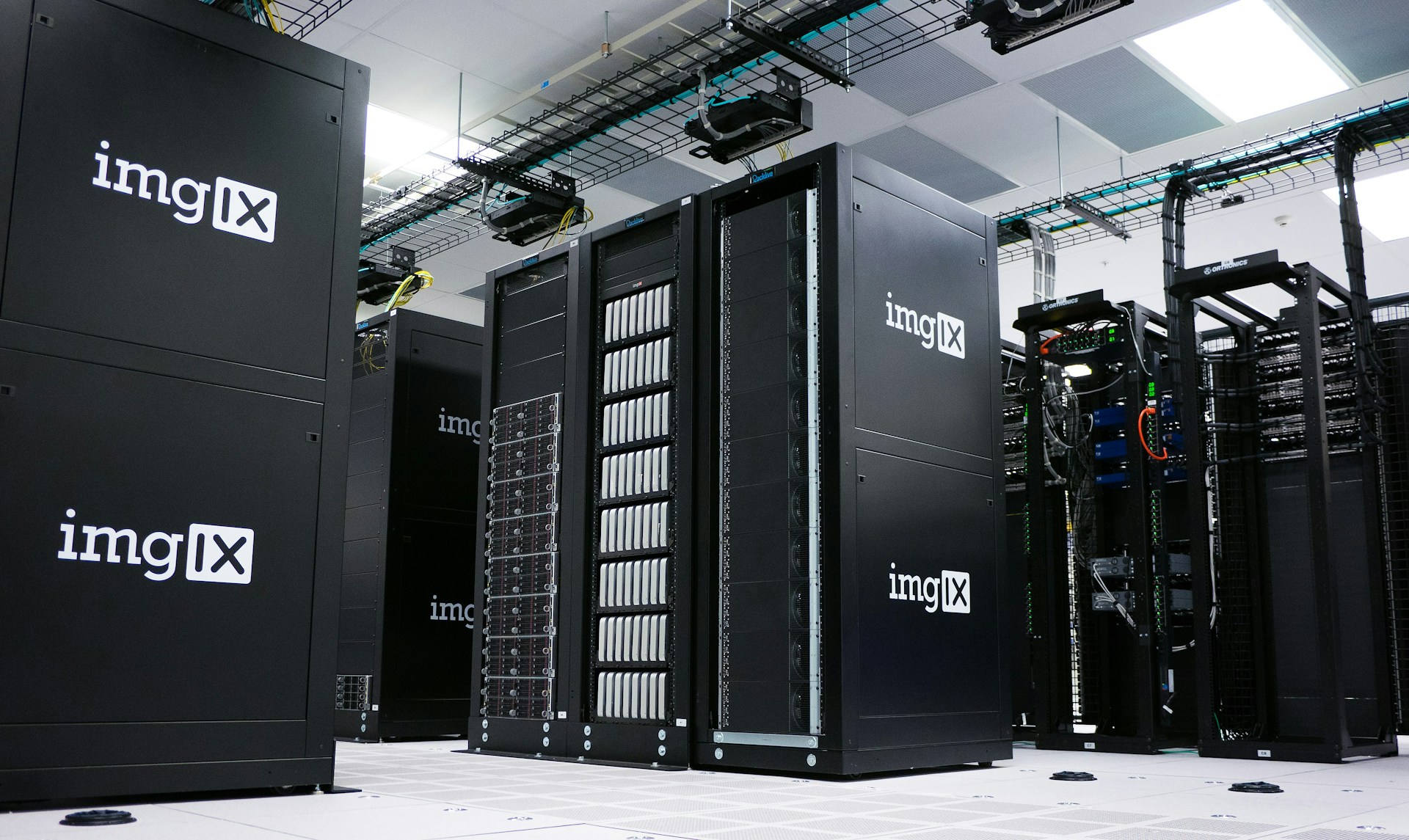

Behind the scenes: distributed computing

Behind the scenes: distributed computing

Behind the scenes: distributed computing

Behind the scenes: distributed computing

Step 5: Inspect results.

tar_read(ranks_unstructured)
#> # A tibble: 1,000 × 19
#>    b_groupgroup_1 b_groupgroup_2 b_groupgroup_3 b_timetime_2
#>             <dbl>          <dbl>          <dbl>        <dbl>
#>  1           4104           2573           3593         8346
#>  2          11074          10962          10986         2911
#>  3           9407          10515           9904         2703
#>  4           6878             28            728         9672
#>  5           3467           3365           3510        11599
#>  6           6156           7975           6034         9547
#>  7           6971           5843           1357        11736
#>  8           1289            762           3830        10178
#>  9           8738           6655          10501         2387
#> 10           7985           7380           6802         6918
#> # ℹ 990 more rows
#> # ℹ 15 more variables...

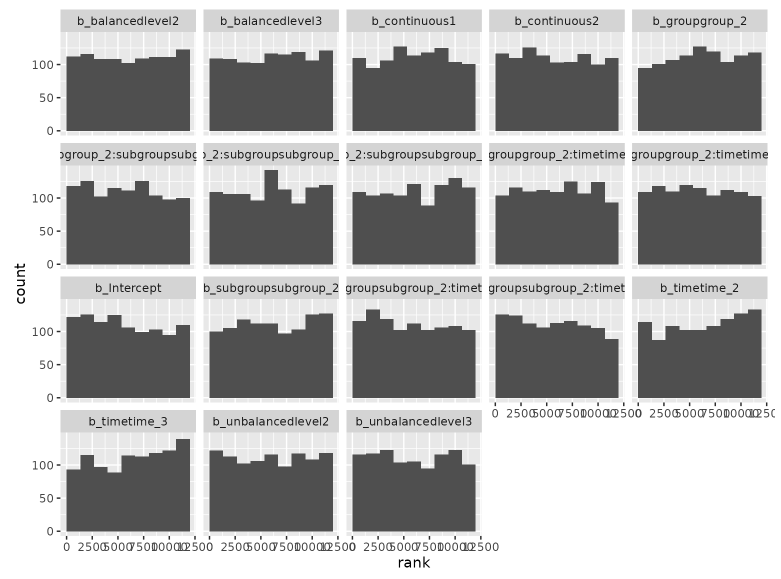

Step 5: Inspect results.

• Ranks are roughly uniform, model appears okay.
• https://openpharma.github.io/brms.mmrm/articles/sbc.html

Step 6: Iterate as needed.

tar_make()
#> ...
#> ✔ skipped target prior_subgroup
#> ▶ dispatched target unstructured
#> ...
#> ✔ skipped branch ranks_subgroup_42f1f9eb12129c61
#> ▶ dispatched branch ranks_unstructured_a5f4994d5939727e
#> ...

Step 6: Iterate as needed.

tar_outdated()
#> character(0)

tar_make()
#> ...
#> ✔ skipped pipeline [2.357 minutes]

Recap

• Statistical work comes with scary non-statistical problems.
• Solutions:
  1. Often come from software engineering.
  2. Are game-changers Statistics and data science.
• Non-statistical breakthroughs are waiting for statisticians to notice them.

Thanks!

https://wlandau.github.io/LatinR2024

References

• Will Landau, Kevin Kunzmann, Yoni Sidi, Christian Stock (2024). “brms.mmrm: Bayesian MMRMs using ‘brms’”. R package version 1.1.1, https://openpharma.github.io/brms.mmrm/.
• Will Landau (2021). “The targets R package: a dynamic Make-like function-oriented pipeline toolkit for reproducibility and high-performance computing”. Journal of Open-Source Software, 6(57), https://doi.org/10.21105/joss.02959.
• Martin Modrák, Angie H. Moon, Shinyoung Kim, Paul Bürkner, Niko Huurre, Kateřina Faltejsková, Andrew Gelman, Aki Vehtari (2023). “Simulation-Based Calibration Checking for Bayesian Computation: The Choice of Test Quantities Shapes Sensitivity”. Bayesian Analysis. https://doi.org/10.1214/23-BA1404.
