simulate_dataset <- function(
mean_response_drug,
sample_size
) {
patient_id <- paste0(
"patient_",
sample.int(n = 1e9, size = sample_size, replace = FALSE)
)
study_arm <- rep(
x = c("drug", "placebo"),
each = sample_size / 2
)
response_drug <- rnorm(
n = sample_size / 2,
mean = mean_response_drug,
sd = 4.25
)
response_placebo <- rnorm(
n = sample_size / 2,
mean = 1,
sd = 4.25
)
tibble(
patient_id = patient_id,
study_arm = study_arm,
response = c(response_drug, response_placebo)
)
}Leveraging {targets} and {crew} to simulate clinical trials
Will Landau
Trial design: optimization and balance
Clinical trial simulation
Example trial and simulation
- Randomized, controlled, parallel, non-adaptive phase 3 study.
- Randomize half the patients to drug, half to placebo.
- The main outcome (primary endpoint) is continuous, and a higher score is healthier.
- Declare efficacy if the p-value is < 0.05 from a 1-sided hypothesis test.
- Goal of the simulation: determine minimum number of patients required to demonstrate superiority to placebo with 90% power and Type I error less than 5%.
Simulation code: R functions
- A data analysis is a sequence of transformations.
- Functions are great tools to express those transformations.
simulate_dataset()accepts a simulation scenario (with sample size and assumed efficacy level) and returns a simulated dataset.analyze_dataset()accepts a simulated dataset and returns a one-row data frame with a p-value (and optionally posterior probabilities, etc.).simulate_trial()chainssimulate_dataset()andanalyze_dataset()together.
Scenarios
Procedure
- Use
simulate_trial()to simulate thousands of replications of each scenario (row above). - Within each scenario, calculate the proportion of replications declared efficacy (p-value < 0.05).
Goals
- Determine the lowest sample size with power \(\ge\) 90% and type 1 error < 5%.
- Manage the computational demands of large simulations.
A reproducible analysis pipeline tool

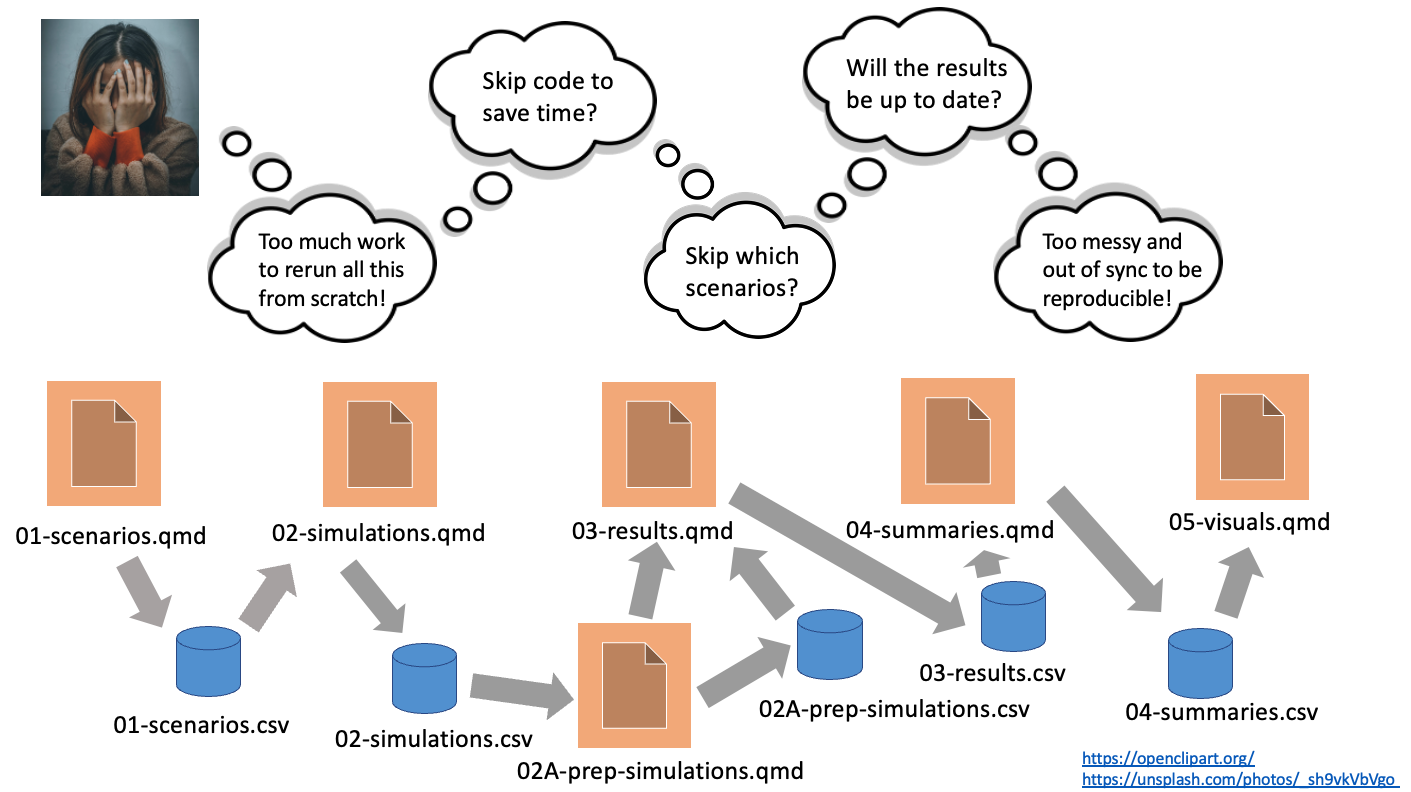

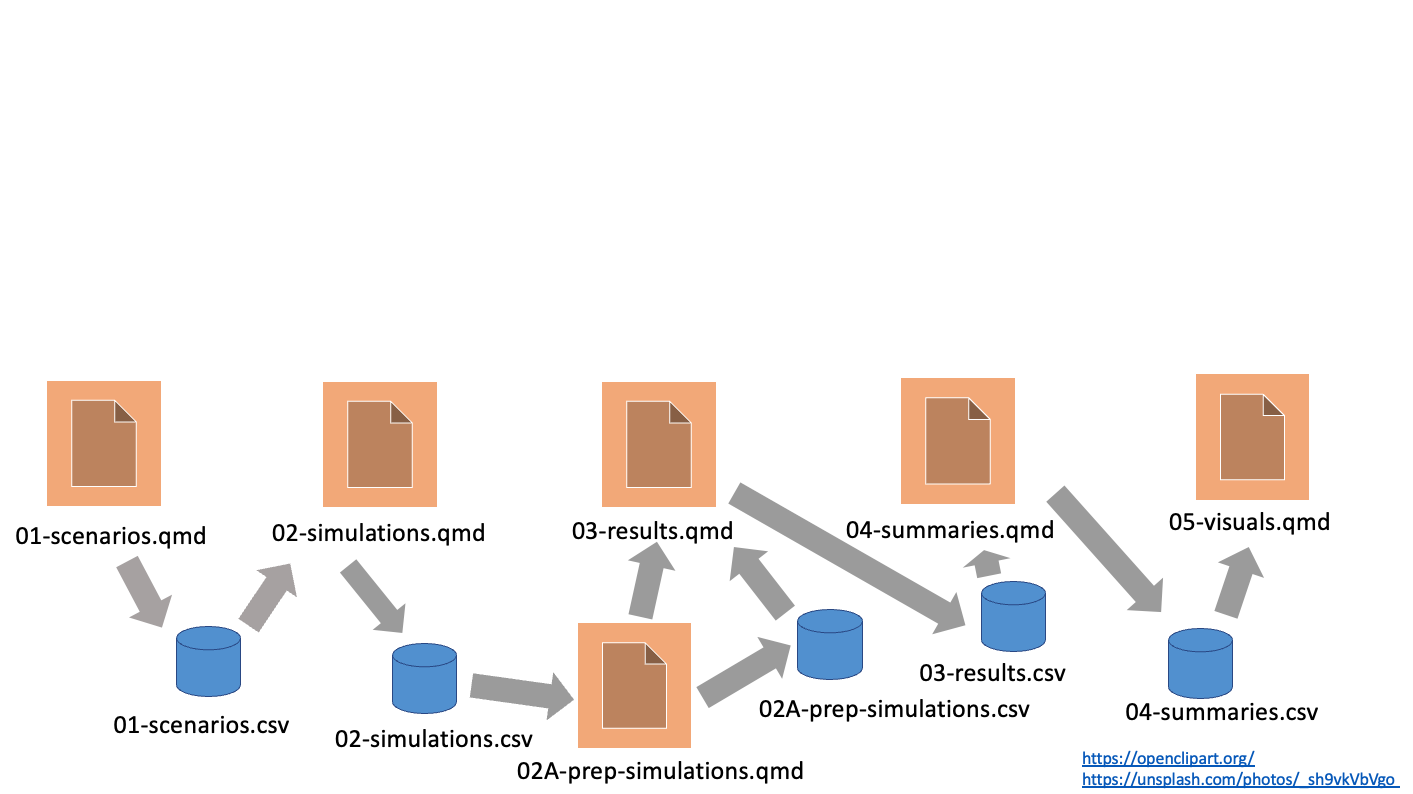

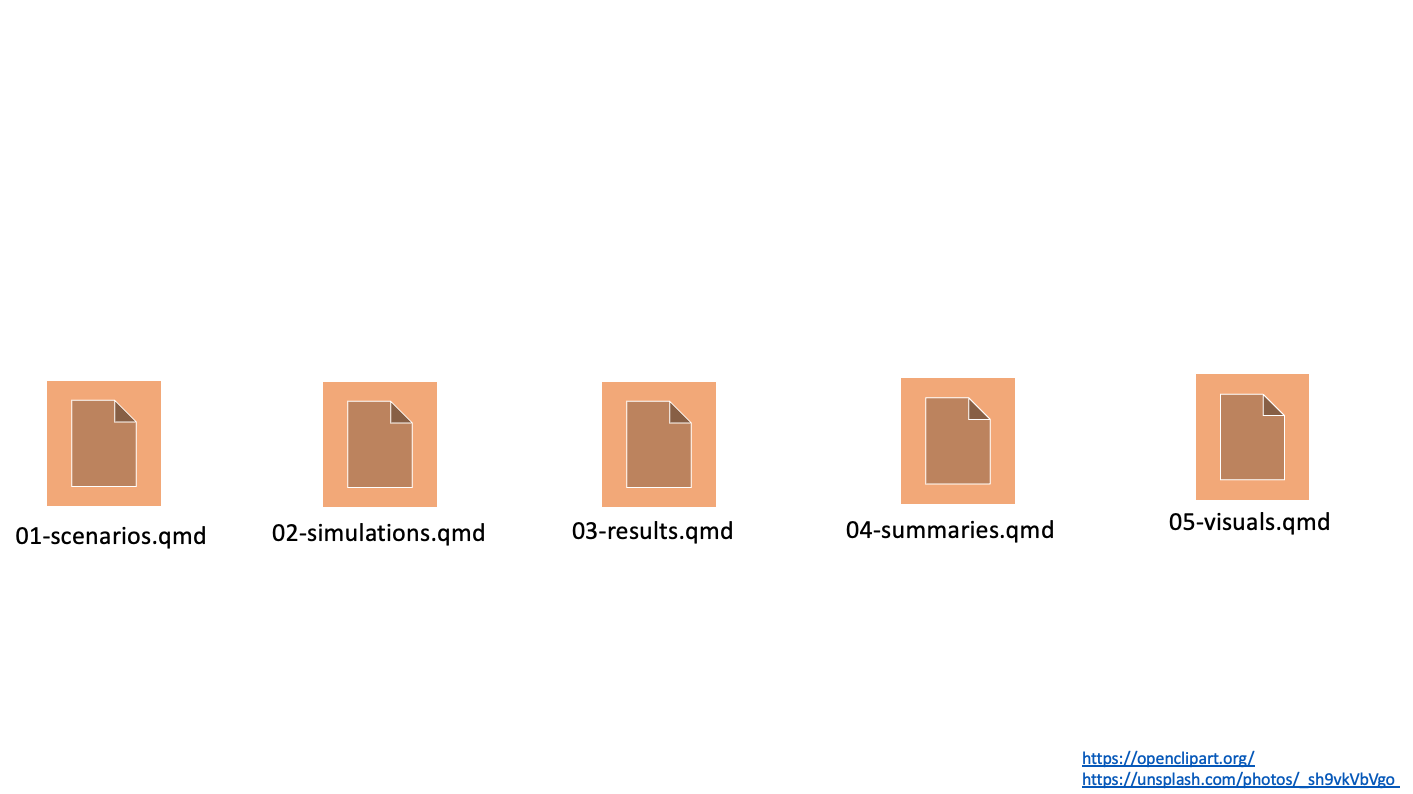

Typical notebook-based simulation
Messy reality: managing data
Messy reality: managing change
Make-like pipeline tools
- Orchestrate moving parts.
- Skip up-to-date results.
- Scale the computation.
- Manage output data.
targets
- Designed for R.
- Encourages good function-oriented programming habits.
- Automatic dependency detection.
- Behind-the-scenes data management.
- Distributed computing.
Resources

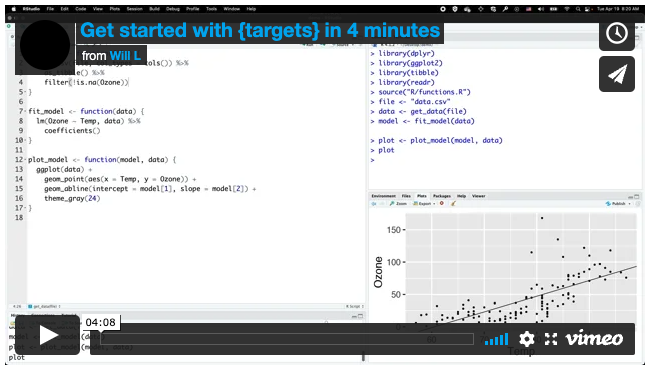

- Get started in four minutes: https://vimeo.com/700982360
- Example project: https://github.com/wlandau/targets-four-minutes
- Documentation website: https://docs.ropensci.org/targets/
- User manual: https://books.ropensci.org/targets/
Inspect the pipeline
tar_manifest()
#> # A tibble: 3 × 2
#> name command
#> <chr> <chr>
#> 1 simulations_scenario_1 "simulate_trial(mean_response_drug = 2…
#> 2 simulations_scenario_2 "simulate_trial(mean_response_drug = 2…
#> 3 results "bind_rows(simulations_scenario_1, sim…
tar_outdated()
#> [1] "simulations_scenario_1" "simulations_scenario_2"
#> [3] "results"
tar_visnetwork()
Change a command
tar_outdated()
#> [1] "simulations_scenario_1" "results"
tar_make()
#> ▶ start target simulations_scenario_1
#> ● built target simulations_scenario_1 [0.057 seconds]
#> ✔ skip target simulations_scenario_2
#> ▶ start target results
#> ● built target results [0.001 seconds]
#> ▶ end pipeline [0.137 seconds]Change a function
tar_outdated()
#> [1] "simulations_scenario_1" "simulations_scenario_2"
#> [3] "results"
tar_make()
#> ▶ start target simulations_scenario_1
#> ● built target simulations_scenario_1 [0.055 seconds]
#> ▶ start target simulations_scenario_2
#> ● built target simulations_scenario_2 [0.009 seconds]
#> ▶ start target results
#> ● built target results [0 seconds]
#> ▶ end pipeline [0.144 seconds]Evidence of reproducibility
Extending targets and scaling out
Example: literate programming
- Goal: do the hard computation upstream, then show the results in downstream literate programming documents using
tar_read()andtar_load(). tar_quarto()andtar_render()render documents as targets in the pipeline.1
Run the report in the pipeline
Scale out with tar_map_rep()
- Need to compare different sample sizes and different efficacy scenarios.
- Need thousands of simulation replications to estimate operating characteristics (power, type 1 error).
- The
targetspackage supports flexible static branching and dynamic branching. tarchetypes::tar_map_rep()is a target factory that uses static branching for scenarios and dynamic branching for replications within scenarios.
Branching structure
- Each square “pattern” target is a dynamic target with a simulation scenario.
- Each simulation scenario has 25 dynamic branches.
- Each dynamic branch runs 40 simulation replications.
Problem
- Real simulations can take hours to run.
- Targets run sequentially by default.
Solution
crew: a framework for asynchronous and distributed computing.- Plugs into
targetspipelines to run steps in parallel.
A distributed worker launcher for asynchronous tasks
Parallel/async tools before crew
future: unifying interface for distributed computing.clustermq: fast functional programming on computing clusters.mirai: fast task scheduler on the local network.rrq: Redis-based task queue.callr: manage individual external R processes.promises: opinionated situation-specific asynchronous programming.- More listed at https://CRAN.R-project.org/view=HighPerformanceComputing.
What is crew?
Why crew?
- Fast
crewis fast sincemiraiis asynchonous and ultra-efficient.
- Frugal
crewlaunches new workers when the task load increases.- Workers can exit when the task load decreases (e.g. configurable maximum idle time).
- Friendly
crewmanages all tasks and results from one central controller.- Supports controller groups with different types of workers.
- Users can write launcher plugins for different platforms such as traditional clusters and cloud computing services.
- Fits right into
targetsand Shiny apps.
crew interface
# Set up the session.
library(crew)
controller <- crew_controller_local(workers = 2, seconds_idle = 10)
controller$start()
# Submit a task.
controller$push(name = "example", command = Sys.sleep(10))
# Collect the result.
while (is.null(result <- controller$pop())) Sys.sleep(0.001)
print(result)
#> # A tibble: 1 × 11
#> name command result seconds seed error trace warnings ...
#> <chr> <chr> <list> <dbl> <int> <chr> <chr> <chr> ...
#> 1 example Sys.sleep(10) <lgl [1]> 10.0 319445426 NA NA NA ...
# Terminate the controller, including the dispatcher process.
controller$terminate()
Push or pop tasks at any time
crew.cluster & controller groups
# Local process controller
local <- crew_controller_local(name = "name_local", workers = 2)
# Sun Grid Engine controller
sge <- crew.cluster::crew_controller_sge(
name = "name_sge",
seconds_launch = 60,
workers = 50,
sge_cores = 4,
sge_memory_gigabytes_required = 2L,
seconds_idle = 30,
seconds_exit = 2,
sge_log_output = "logs/",
script_lines = paste0("module load R/", getRversion())
verbose = TRUE
)
# Controller group
controller <- crew_controller_group(local, sge)
# Submit a task to whichever controller.
controller$push(command = Sys.sleep(10))
# Submit to a specific controller.
controller$push(command = Sys.sleep(10), controller = "name_sge")
Custom launcher plugins
- A
crewlauncher is anR6class that tells acrewcontroller how to launch parallel workers. - Users can write custom plugins for specific platforms and technologies.
crew.aws.batchcovers AWS Batch.crew.clustercovers SLURM, Sun Grid Engine, LSF, and PBS/TORQUE.- Plenty of room for more (Google Cloud Run, Kubernetes, etc.).
- Guide: https://wlandau.github.io/crew/articles/launcher_plugins.html.
How to write a launcher plugin
- Guide: https://wlandau.github.io/crew/articles/launcher_plugins.html.
- Write an
R6subclass ofcrew_class_launcherwith methodslaunch_worker()andterminate_worker(). - Workers dial into the client IP address and port on the local network.
- Example with local
processxprocesses on non-Windows systems:
custom_launcher_class <- R6::R6Class(
classname = "custom_launcher_class",
inherit = crew::crew_class_launcher,
public = list(
launch_worker = function(call, launcher, worker, instance) {
bin <- file.path(R.home("bin"), "R")
processx::process$new(
command = bin,
args = c("-e", call),
cleanup = FALSE
)
},
terminate_worker = function(handle) {
handle$kill()
}
)
)
Custom launcher plugin in action
# Create a controller with the launcher you defined.
controller <- crew_controller_custom(workers = 2, seconds_idle = 10)
# Start the controller, including the dispatcher process.
controller$start()
# Submit a task.
controller$push(name = "example", command = Sys.sleep(10))
# Collect the result.
while (is.null(result <- controller$pop())) Sys.sleep(0.001)
print(result)
#> # A tibble: 1 × 11
#> name command result seconds seed error trace warnings ...
#> <chr> <chr> <list> <dbl> <int> <chr> <chr> <chr> ...
#> 1 example Sys.sleep(10) <lgl [1]> 10.0 319445426 NA NA NA ...
# Terminate the controller, including the dispatcher process.
controller$terminate()

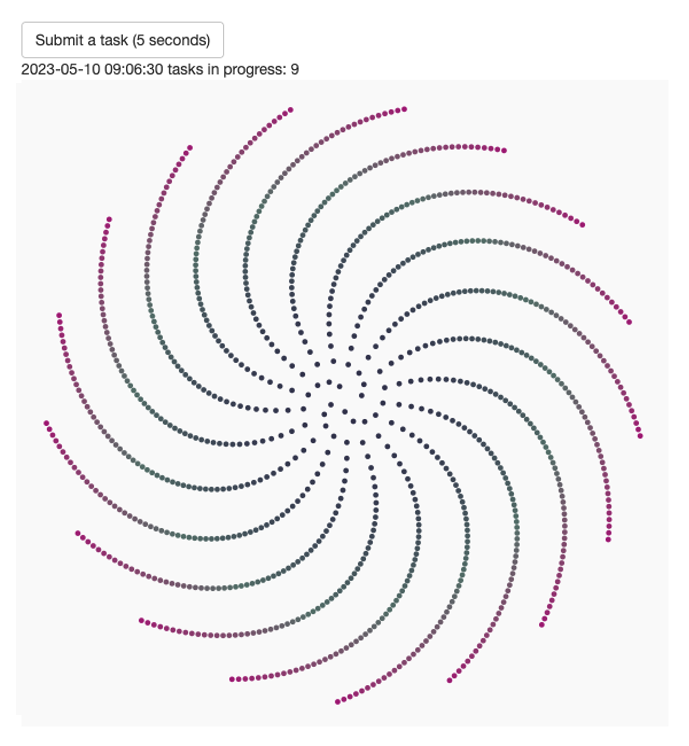

crew with Shiny
- Thanks to Daniel Woodie for sparking an early version of this app.
- Click the button to submit a 5-second task.
- Submit as many tasks as you like.
- A time stamp refreshes every second (thanks to asynchronicity).
- Each task creates a random phyllotaxis using the
aRtsypackage.
crew with Shiny: UI
# app.R file:
library(crew)
library(shiny)
library(ggplot2)
library(aRtsy)
run_task <- function() {
Sys.sleep(5)
canvas_phyllotaxis(
colors = colorPalette(name = "random", n = 3),
iterations = 1000,
angle = runif(n = 1, min = - 2 * pi, max = 2 * pi),
size = 1,
p = 1
)
}
status_message <- function(n) {
paste(format(Sys.time()), "tasks in progress:", n)
}
ui <- fluidPage(
actionButton("task", "Submit a task (5 seconds)"),
textOutput("status"),
plotOutput("result")
)
crew with Shiny: server (1/2)
server <- function(input, output, session) {
# reactive values and outputs
reactive_result <- reactiveVal(ggplot())
reactive_status <- reactiveVal("No task submitted yet.")
reactive_poll <- reactiveVal(FALSE)
output$result <- renderPlot(reactive_result(), height = 600, width = 600)
output$status <- renderText(reactive_status())
# crew controller
controller <- crew_controller_local(workers = 4, seconds_idle = 10)
controller$start()
onStop(function() controller$terminate())
# button to submit a task
observeEvent(input$task, {
controller$push(
command = run_task(),
data = list(run_task = run_task),
packages = "aRtsy"
)
reactive_poll(TRUE)
})
crew with Shiny: server (2/2)
# event loop to collect finished tasks
observe({
req(reactive_poll())
invalidateLater(millis = 100)
result <- controller$pop()$result
if (!is.null(result)) reactive_result(result[[1]])
reactive_status(status_message(n = length(controller$tasks)))
reactive_poll(controller$nonempty())
})
}
shinyApp(ui = ui, server = server)
- Tutorial vignette: https://wlandau.github.io/crew/articles/shiny.html
- Deployed app: https://wlandau.shinyapps.io/crew-shiny
crew parallelizes targets pipelines
- Implicit parallel computing.
- Run conditionally independent targets in parallel as needed.
- Automatically wait for upstream dependencies to finish.
- The dependency graph governs these decisions.
Dependency graph
First target runs
Then simulations run in parallel
Then simulations aggregate
Then operating characteristics
Then the report
Pipeline done
How to use crew with targets
- Supply a
crewcontroller in_targets.R.
- Run the pipeline with
tar_make()in the R console.
- Learn more at https://books.ropensci.org/targets/crew.html.
Help wanted
- Looking for new
crewlauncher plugins for the cloud. - Plenty of room for Google Cloud Run, Kubernetes, and beyond.
- Guide: https://wlandau.github.io/crew/articles/plugins.html
